Full Color IP65 P4 P5 P8 Outdoor Fixed LED Display Board For Signage

Full Color IP65 P4 P5 P8 Outdoor Fixed LED Display Board For Signage

Full Color IP65 P4 P5 P8 Outdoor Fixed LED Display Board For Signage
Full Color IP65 P4 P5 P8 Outdoor Fixed LED Display Board For Signage
Full Color IP65 P4 P5 P8 Outdoor Fixed LED Display Board For Signage
Product Details:
Place of Origin: Shenzhen China
Brand Name: KAILITE
Certification: CE RoHS ISO9001 UL FCC CCC
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: Wooden case/Flight case
Delivery Time: About 22-24 days
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Product Name: Super Quality Factory P4 Outdoor Fixed LED Display Module Size: 320mm*160mm
Module Resolution: 80*40 Cabinet Size: 960*960mm
Cabinet Resolution: 240×240 Screen Dimension: Customized
Led Type: SMD1921 Application: Commercial Ads Billboard Signage Poster
Color: Full Color Ingress Protection: IP65
High Light:

5500nits Outdoor Fixed LED Display

,

SMD1921 Outdoor Fixed LED Display

,

SMD1921 Full Color Led Display Board

Full Color IP65 P4 P5 P8 Outdoor Fixed LED Display Board For Signage



Super Quality Factory Price P4 P5 P8 Outdoor Fixed LED Display for Signage



Quick details of P4 Outdoor Fixed LED Display



1. Pixel pitch: 4mm



2. Brightness: ≥5500nits



3.  Driving method: 1/10Scan,Constant Current



4. Cabinet material: iron or die-casting aluminum



5. Physical density: 62500 dots/㎡


Product Specification(P4 P5 P8 P10)


Item KP4 KP5 KP8 KP10
Pixel pitch 4mm 5mm 8mm 10mm
Module size 320*160mm 320*160mm 320*160mm 320*160mm
Module resolution 80×40 64×32 40×20 32×16
Physical density 62500 dots/㎡ 40000 dots/㎡ 15625 dots/㎡ 10000 dots/㎡
LED type SMD1921 SMD1921 SMD3535 SMD3535
Cabinet size 960×960×mm 960×960×mm 960×960×mm 960×960×mm
Cabinet resolution 240×240 192×192 120×120 96×96
Cabinet material Die casting aluminum Die casting aluminum Die casting aluminum Die casting aluminum
Maintenance way Rear Rear Rear Rear
Best viewing distance ≥4m ≥5m ≥8m ≥10m
Best viewing angle H: 140°; V:140° H: 140°; V:140° H: 140°; V:140° H: 140°; V:140°
Driving method (Constant Current) 1/10Scan 1/8 Scan 1/5 Scan, 1/2 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥5500nits ≥5500nits ≥6000nits ≥6000nits
Grey Level 12-16bit 12-16bit 12-16bit 12-16bit
Ingress protection IP65 IP65 IP65 IP65
Life Time >100,000 Hours >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002 <0.0002




Features of Outdoor Fixed LED Display


1. Use brand LED lamps such as Nationstar or Kinglight.


2. Low power consumption.


3. Strict test of all processs and Low defective rate, quality is guatanteed.


4. Wide viewing angle(H: 140°; V:140°).


5. IP65 grade, High bightness(≥5500nits), adapt to outdoor environment.

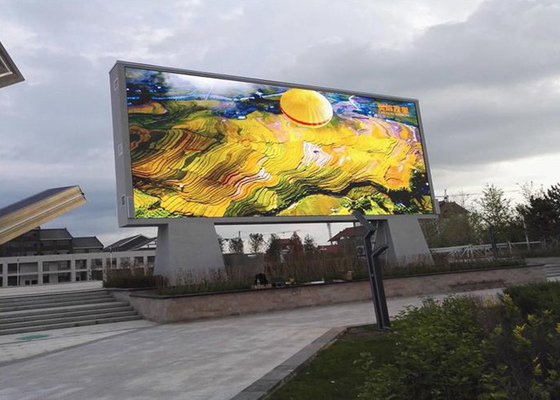

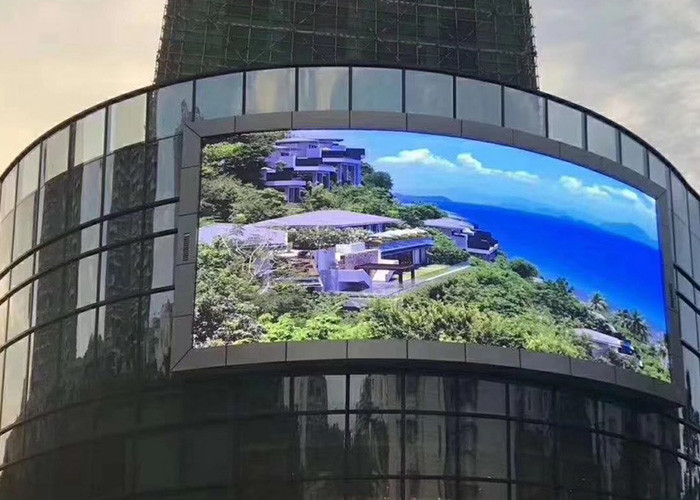

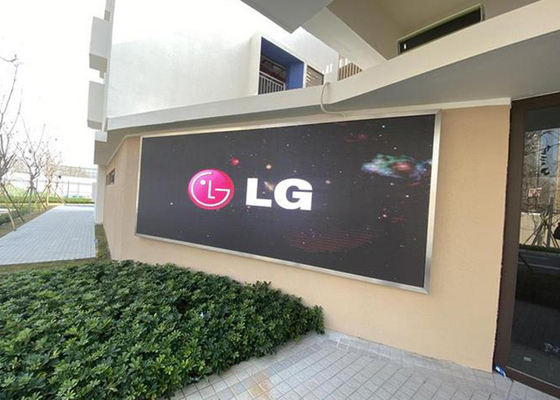

Applications of Outdoor Fixed LED Display



Outdoor fixed LED display are mainly used for advertising, they could customed size, so could be installed many places, such as alongside the street, inside the large shopping center, business center, parks, almost everywhere people concentrate in.





Full Color IP65 P4 P5 P8 Outdoor Fixed LED Display Board For Signage 0

Full Color IP65 P4 P5 P8 Outdoor Fixed LED Display Board For Signage 1Full Color IP65 P4 P5 P8 Outdoor Fixed LED Display Board For Signage 2




After-sell service:


1. 2 years quality guarantee period for all parts.


2. providing free frame structure drawing, with power and data cables wiring diagram. easy for your to set up the led screen.


3. Free remote control debuggine serice if you need.


4. Online service in 7*24 hours if you have any question about the led screen.


5. Free technical training for how to use and handle the software.


FAQ:


1. What's the package and shipping way?
Most time packed with wooden case or flight case, shipped by air or sea.


2. Can you accept OEM/ODM ?
Yes, we can, and we can print logos for free.


3. Are you factory or manufacturer?
we are factory and manufacturer, we have most competitive factory price.


4. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.


5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
