Weatherproof Backdrop Outdoor Full Color Led Display Commercial Ads

Weatherproof Backdrop Outdoor Full Color Led Display Commercial Ads

Weatherproof Backdrop Outdoor Full Color Led Display Commercial Ads
Weatherproof Backdrop Outdoor Full Color Led Display Commercial Ads
Weatherproof Backdrop Outdoor Full Color Led Display Commercial Ads
Product Details:
Place of Origin: Shenzhen China
Brand Name: KAILITE
Certification: CE RoHS ISO9001 UL FCC CCC
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: Wooden case/Flight case
Delivery Time: About 22-24 days
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Product Name: P4 Outdoor Backdrop Led Screen Ingress Protection: IP65
Screen Dimension: Customized Cabinet Size: 960*960mm
Cabinet Resolution: 240×240 Application: Commercial Ads Billboard Signage Poster
Led Type: SMD1921 Input Voltage: AC 110-220v±10%
High Light:

Backdrop Outdoor Full Color Led Display

,

Weatherproof Outdoor Full Color Led Display

,

SMD1921 Full Color LED Screen

Weatherproof Backdrop Outdoor Full Color Led Display Commercial Ads



Weatherproof P4 P5 P8 P10 Outdoor Backdrop Led Screen Commercial Ads



Quick details of P4 Outdoor Backdrop LED Screen



1. Pixel pitch: 4mm



2. Brightness: ≥5500nits



3. Maintenance way: Front/Rear



4. Cabinet material: iron or die-casting aluminum



5. Best viewing distance: ≥4m



Product Specification(P4 P5 P8 P10)


Item P4 P5 P8 P10
Pixel pitch 4mm 5mm 8mm 10mm
Module size 320*160mm 320*160mm 320*160mm 320*160mm
Module resolution 80×40 64×32 40×20 32×16
Physical density 62500 dots/㎡ 40000 dots/㎡ 15625 dots/㎡ 10000 dots/㎡
LED type SMD1921 SMD1921 SMD3535 SMD3535
Cabinet size 960×960×mm 960×960×mm 960×960×mm 960×960×mm
Cabinet resolution 240×240 192×192 120×120 96×96
Maintenance way Front/Rear Front/Rear Front/Rear Front/Rear
Best viewing distance ≥4m ≥5m ≥8m ≥10m
Best viewing angle H: 140°; V:140° H: 140°; V:140° H: 140°; V:140° H: 140°; V:140°
Driving method (Constant Current) 1/10Scan 1/8 Scan 1/5 Scan, 1/2 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥5500nits ≥5500nits ≥6000nits ≥6000nits
Grey Level 12-16bit 12-16bit 12-16bit 12-16bit
Ingress protection IP65 IP65 IP65 IP65
Life Time >100,000 Hours >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002 <0.0002




Features of Outdoor Backdrop LED Screen


1. Use good and reliable material.



2. Long life time(>100,000 Hours)


3. Using Novastar system, could controlled by USB/wifi/cellphone.



4. Wide viewing angle(H: 140°; V:140°).


5. IP65 grade, High bightness(≥5500nits), adapt to outdoor environment.

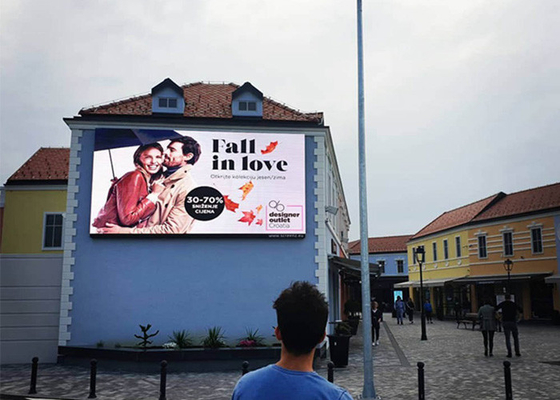

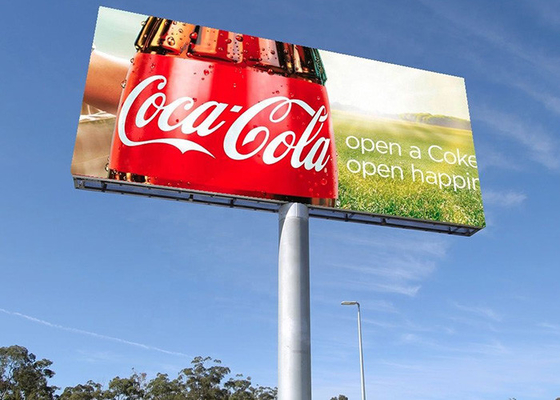

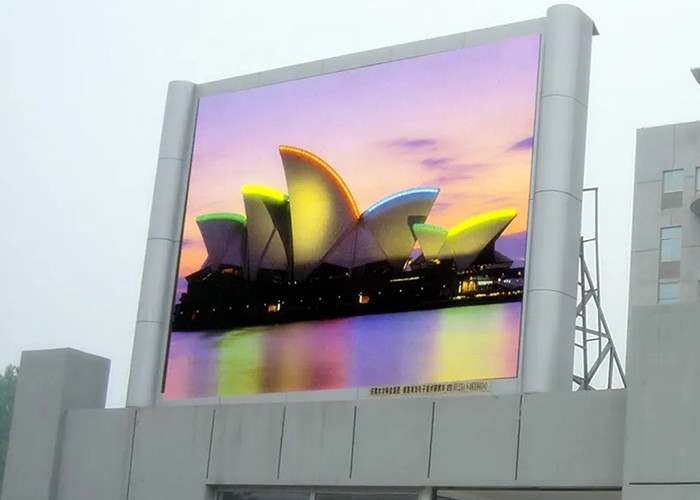

Applications of Outdoor Fixed LED Display



Outdoor fixed LED display are mainly used for advertising, they could customed size, so could be installed at many places, such as alongside the street, inside the large shopping center, business center, parks, almost everywhere people concentrate in.





Weatherproof Backdrop Outdoor Full Color Led Display Commercial Ads 0

Weatherproof Backdrop Outdoor Full Color Led Display Commercial Ads 1




After-sell service:


1. 2 years quality guarantee period.


2. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.


3. Free remote control debuggine serice if you need.


4. Failure maintenance of LED panels.


5. Free technical training for how to use and handle the software.


FAQ:


1. Do I need to buy other equipment to install LED screen?
You just need to prepare structure and installation tools.


2. Can you accept OEM/ODM ?
Yes, we can, and we can print logos for free.


3. Are you factory or manufacturer?
we are factory and manufacturer, specilized in LED screen for 14 years.


4. I don't know how to do custom clearance and pay duty, what should I do?
We can offer DDP door to door service.




5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
