Weatherproof Outdoor LED Billboard Higt Brightness P4 P5 P8 P10

Weatherproof Outdoor LED Billboard Higt Brightness P4 P5 P8 P10

Weatherproof Outdoor LED Billboard Higt Brightness P4 P5 P8 P10
Weatherproof Outdoor LED Billboard Higt Brightness P4 P5 P8 P10
Weatherproof Outdoor LED Billboard Higt Brightness P4 P5 P8 P10
Product Details:
Place of Origin: Shenzhen China
Brand Name: KAILITE
Certification: CE RoHS ISO9001 UL FCC CCC
Model Number: P4
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: Wooden case/Flight case
Delivery Time: About 22-24 days
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Product Name: P4 LED Sign Advertisement Input Voltage: AC 110-220v±10%
Ingress Protection: IP65 Maintenance Way: Front/Rear
Application: Commercial Ads Billboard Signage Poster Driving Method: 1/10 Scan, Constant Current
High Light:

Weatherproof Outdoor LED Billboard

,

Commercial Ads Outdoor LED Billboard

,

Weatherproof Commercial Led Sign

Weatherproof Outdoor LED Billboard Higt Brightness P4 P5 P8 P10



Weatherproof Led Sign Advertisement Commercial Higt Brightness P4 P5 P8 P10



Quick details of P4 LED Sign Advertisement



1. Brightness: ≥5500nits



2. Module size: 320*160mm



3. Cabinet material: iron or die-casting aluminum



4. Physical density: 62500 dots/㎡



5. Refresh rate: 1920-3840Hz





Product Specification(P4 P5 P8 P10)


Item P4 P5 P8 P10
Pixel pitch 4mm 5mm 8mm 10mm
Module size 320*160mm 320*160mm 320*160mm 320*160mm
Module resolution 80×40 64×32 40×20 32×16
Physical density 62500 dots/㎡ 40000 dots/㎡ 15625 dots/㎡ 10000 dots/㎡
LED type SMD1921 SMD1921 SMD3535 SMD3535
Cabinet size 960×960mm 960×960mm 960×960mm 960×960mm
Cabinet resolution 240×240 192×192 120×120 96×96
Maintenance way Front/Rear Front/Rear Front/Rear Front/Rear
Best viewing distance ≥4m ≥5m ≥8m ≥10m
Best viewing angle H: 140°; V:140° H: 140°; V:140° H: 140°; V:140° H: 140°; V:140°
Driving method (Constant Current) 1/10Scan 1/8 Scan 1/5 Scan, 1/2 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥5500nits ≥5500nits ≥6000nits ≥6000nits
Grey Level 12-16bit
Ingress protection IP65
Life Time >100,000 Hours
The rate <0.0002




Features of LED Sign Advertisement


1. Use good and reliable material.



2. Using Novastar system, could controlled by USB/wifi/cellphone.


3. High bightness(≥5500nits), keep clear in the direct sunlight.



4. Customized size, flexible application.


5. High refresh rate(1920-3840Hz).





Applications of LED Sign Advertisement

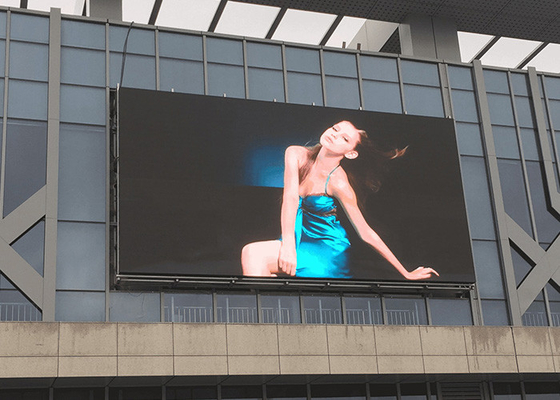

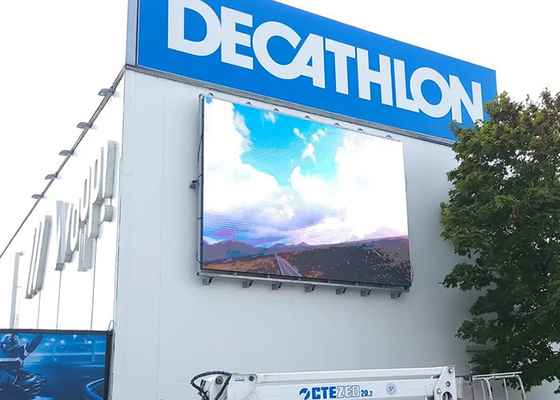

LED signs are mainly used for advertising, they could customed size, so could be installed at many places, such as alongside the street, inside the large shopping center, business center, parks, almost everywhere people concentrate in.





Weatherproof Outdoor LED Billboard Higt Brightness P4 P5 P8 P10 0

Weatherproof Outdoor LED Billboard Higt Brightness P4 P5 P8 P10 1




After-sell service:


1. 2 years quality guarantee period.


2. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.


3. Providing controller and software manual, to help customer master all kinds of functions.


4. Answer your questions online.


5. Failure maintenance of LED panels.


FAQ:


1. Do I need to buy other equipments to install LED screen?
You just need to prepare structure and installation tools.


2. How long is the warranty?
The standard warranty is 2 years. It could be longer upon request.




3. Do you provide any free spare parts in each order?
Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.


4. I don't know how to do custom clearance and pay duty, what should I do?
We can offer DDP door to door service.


5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
