Full Waterproof 1R1G1B P10 Digital Led Billboard 960*960 Cabinet

Full Waterproof 1R1G1B P10 Digital Led Billboard 960*960 Cabinet

  • Full Waterproof 1R1G1B P10 Digital Led Billboard 960*960 Cabinet
  • Full Waterproof 1R1G1B P10 Digital Led Billboard 960*960 Cabinet
  • Full Waterproof 1R1G1B P10 Digital Led Billboard 960*960 Cabinet
Full Waterproof 1R1G1B P10 Digital Led Billboard 960*960 Cabinet
Product Details:
Place of Origin: Shenzhen, China
Brand Name: KAILITE
Certification: IOS9001 , IOS2000,FCC,RoHS,CE,CCC
Model Number: P8
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiatable
Packaging Details: wooden cases
Delivery Time: about 22 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Module Size: 320x160mm Ingress Protection: IP65
Brightness: >6000nits Application: TV Show And Advertising Led Screen
Cabinet Weight: 35kg Grey Level: 12-16bit
Cabinmet Size: 960*960mm Led Lamp: SMD3535
High Light:

1R1G1B Digital Led Billboard

,

Full Waterproof Digital Led Billboard

,

SMD3535 Led Screen Billboard

Full Waterproof 1R1G1B P10 Digital Led Billboard 960*960 Cabinet



Description of Digital Led Billboard

Outdoor LED display screens are characterized by their large size, high brightness, and durability.



Specifications of Digital Led Billboard

Item P10
Pixel pitch 10mm
Module size 320*160mm
Module resolution 32×16
Physical density 10000 dots/㎡
LED type SMD3535
Cabinet size 960×960×mm
Cabinet resolution 96×96
Cabinet material Die casting aluminum
Maintenance way Rear
Best viewing distance ≥10m
Best viewing angle H: 140°; V:140°
Driving method (Constant Current) 1/2Scan
Video frame rate ≥60 Hz
Refresh rate 1920-3840Hz
Brightness ≥6000nits
Grey Level 12-16bit
Ingress protection IP65
Life Time >100,000 Hours
The rate <0.0002
Average power consumption 292W



Features of Outdoor Led Sign Boards
1.
High Brightness: Outdoor LED display screens are designed to be very bright so that they are visible even in direct sunlight. This feature makes them ideal for outdoor advertising and signage.

2. More durable. adopt high quality led lamp and high quality IC with longer time.

3. Well dispaly effect: adopts high resolution display effect, which can show video clearly and high quality images.

4.
High Definition: LED display screens provide high-definition images and videos, making them perfect for large-scale outdoor events.




Full Waterproof 1R1G1B P10 Digital Led Billboard 960*960 Cabinet 0Full Waterproof 1R1G1B P10 Digital Led Billboard 960*960 Cabinet 1

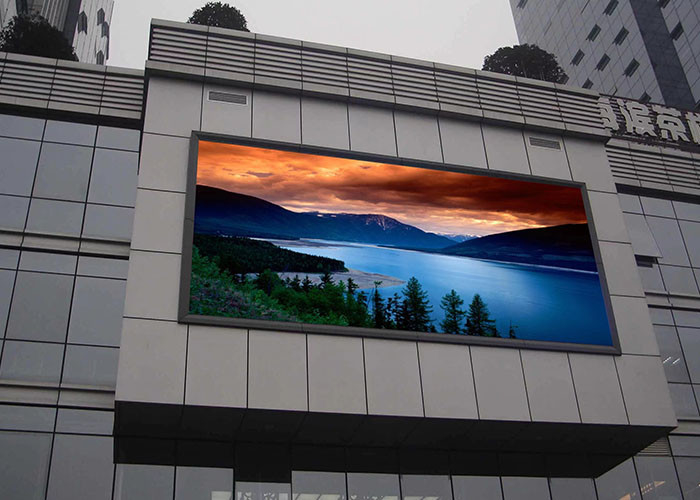

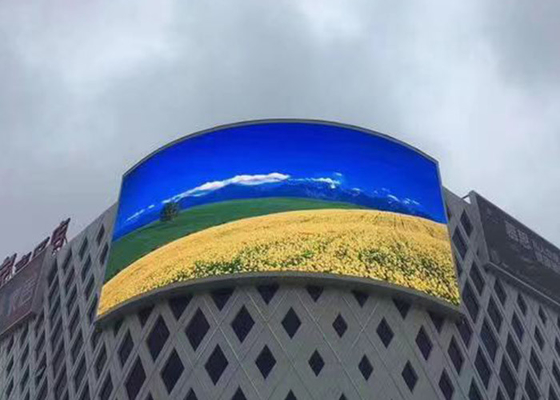

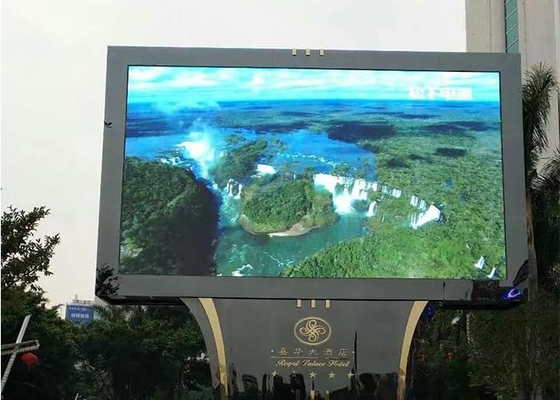

Application of Outdoor Led Sign Boards
Designed by outdoor environment. It can be suitable all kinds of  extreme surrounding, It is widely used in outdoor advertising background, shopping mall, cultural tourism, sports events, truck, church and station.


Why choose KAILITE?

1. Professional led manufacturer with 14 years experience. We can give you professional advice if you need.

2. Best raw materials: Taiwan Sanan LED chip,high quality,high brightness and long life span.

3. Competitive price: 100% factory price,competitive and reasonable price.



4. Good service, we support OEM/ODM service. We will produce led screen or led module product based on your requirment.



After-sell Service:
1. Life time free maintenance and upgrade.

2. Quickly respons: we will respond you with 7*24 hours.

3. 2 years warranty for all parts of led screen.

4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.

5. Special service for big project, such as stadium, exhibitions, squares and so on.




FAQ

1. What's the delivery time?

Standard delivery time is 15 working days. If there is stock, we could ship within 7 days. Feel free to tell if you have urgent case.

2. Can I visit the factory?

 Yes, please contact us in advance so we can a


3: What is your post-sale service?
We will offer instructions to guide you on installation, you can also contact us to have support.

4. How can we guarantee quality?
Always product a pre-production sample before mass production and do finally spection before shipment for every order.


5. Do you offer guarantee for the products?

Yes, we offer 2 years warranty to our products.
