Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE UL FCC CCC RoHS ISO9001 |
Model Number: | P2 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | about 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 8000 square meters per month |
Product Name: | P2 Indoor Digital Signage | Module Size: | 320x160mm |
---|---|---|---|
Module Resolution: | 160×80 | Led Type: | SMD1515 |
Cabinet Size: | 640*480mm | Screen Dimension: | Customized |
Pixel Density: | 250000 Dots/㎡ | Refresh Rate: | 1920-3840Hz |
Highlight: | Wall Mounted Indoor Full Color Led Display,SMD1515 Indoor Full Color Led Display,Wall Mounted Indoor Digital Signage |

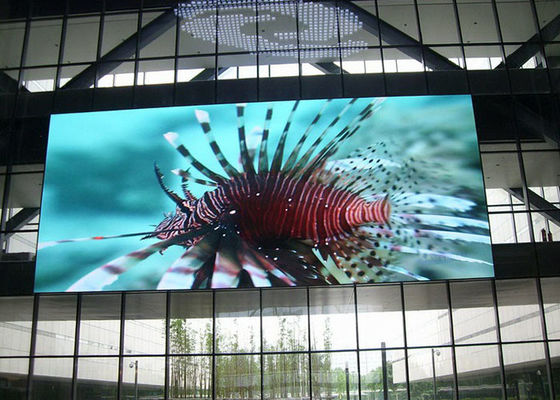

Wall Mounted Indoor Full Color Led Display Digital Signage P2 P2.5 P3.07 P4
Wall Mounted Indoor Digital Signage High Definition P2 P2.5 P3.07 P4
Quick details of P2 Indoor Digital Signage
1. Driving method: 1/40 Scan, constant current.
2. Ingress protection: IP43
3. Video frame rate: ≥60 Hz
4. Best viewing angle: H: 160°; V:160°
5. Grey Level: 12-16bit
Product Parameters(2mm 2.5mm 3.076mm 4mm)
Pixel pitch | 2mm | 2.5mm | 3.076mm | 4mm |
Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 160×80 | 128×64 | 104×52 | 80×40 |
Physical density | 250000 dots/㎡ | 160000 dots/㎡ | 105688 dots/㎡ | 62500 dots/㎡ |
LED type | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
Cabinet size | 640*480mm | 640*480mm | 640*480mm | 640*480mm |
Cabinet resolution | 320*240 | 256*192 | 208*156 | 160*120 |
Maintenance way | Front | Front | Front | Front |
Best viewing distance | ≥2.5m | ≥2.9m | ≥3m | ≥3m |
Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
Driving method (Constant Current) | 1/40 Scan | 1/32 Scan | 1/26 Scan, | 1/20 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥800nits | ≥800nits | ≥800nits | ≥800nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP43 | IP43 | IP43 | IP43 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Features of Indoor Digital Signage
1. Fine pixel pitch, high resolution.
2. Using Novastar system, performance guaranteed.
3. 100% test of all parts to guarantee the quality.
4. Low defective rate(<0.0002), long life span.
5. We have custom service to cater to customer's request.
Applications of Indoor Digital Signage
1. Commercial Ads for shopping mall, store, restaurants.
2. Signage for school, hospital, church.
3. Live show, conference, control room.
4. Stage events such as concert, exhibition, etc.
After-sell Service
1. 2 years quality guarantee period for all parts
2. Failure maintenance of LED panels.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4. Free technical training about the usage of software.
5. Free remote control debuggine serice if you need.
FAQ:
1. Can your factory accept OEM or ODM?
Yes, We can accept OEM and ODM,.and can print logo.
2. What trade terms do you support?
We usually do EXW, FOB, CIF, DDU, DDP terms.
3. Do I need to buy other equipment to install LED screen?
You just need to prepare structure and installation tools.
4. What is your terms of payment?
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
5. What is LED screen common size?
16:9 and 4:3 aspect ratio is popular.
