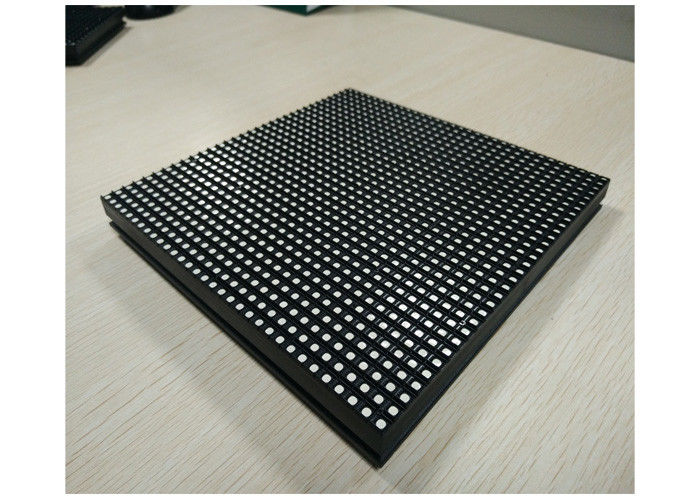

P6 Waterproof RGB LED Module for Video Led Wall Outdoor 27777dots / ㎡ 6mm mudule

P6 Waterproof RGB LED Module for Video Led Wall Outdoor 27777dots / ㎡ 6mm mudule

  • P6 Waterproof RGB LED Module for Video Led Wall Outdoor 27777dots / ㎡ 6mm mudule
  • P6 Waterproof RGB LED Module for Video Led Wall Outdoor 27777dots / ㎡ 6mm mudule
  • P6 Waterproof RGB LED Module for Video Led Wall Outdoor 27777dots / ㎡ 6mm mudule
P6 Waterproof RGB LED Module for Video Led Wall Outdoor 27777dots / ㎡ 6mm mudule
Product Details:
Place of Origin: Guangdong,China
Brand Name: Kailite
Certification: CE FCC ROHS
Model Number: P6 outdoor
Payment & Shipping Terms:
Minimum Order Quantity: 5SQM
Price: Negotiation
Packaging Details: Flight package and wood package
Delivery Time: ahout 20 days
Payment Terms: L/C, T/T
Supply Ability: 1500SQM/per mouth
Contact Now
Detailed Product Description
Item: PH6 Color: Full-color Real Pixels
Use Environment: Outdoor Pixel Pitch: 6mm
Module Size: 192*192mm Physical Density : 27777dots/㎡
Pixel Configuration : 1R1G1B LED Chip: SMD3535
Module Resolution: 32*32 Module Power: 35w
Recommended Viewing Distance: 6-70m Best Viewing Angle : H: 120°; V:120°
Maximum Power Consumption: 900w Average Power Consumption: 480w
Cabinet Size : W576×H576mm Standard Cabinet Resolution: 96*96
High Light:

led smd module

,

led panel module

RGB P6 LED Module192*192mm led module 27777dots/㎡SMD3535 outdoor video



Description:

1. personalized and complete solution for your case
2. factory price and good quality
3. convenient and fast installation ,easy maintenance
4. 2 years wanrranty



Competitive advantages:

1. We are led screen manufacturer for many years, quality is guaranteed.
2. Because we are factory, our price is 5%-10% lower than middleman and trafficker at same level.
3. Professional sales and technical team of 15 people to ensure perfect results.
4. Customer requirements are fundamental, we make different solutions accroding different requirements of customers.



Item P6
Color Full-color real pixels
Use environment Outdoor
Pixel pitch 6mm
Module size 192*192mm
Physical density 27777dots/㎡
Pixel configuration 1R1G1B
LED chip SMD3535
Module resolution 32*32
Module power 35w
Recommended viewing distance 6-70m
Best viewing angle H: 120°; V:120°
Maximum power consumption 900w
Average power consumption 480w
Cabinet size W576m×H576mm
Standard cabinet resolution 96*96
Driving method 1/8Scan, Constant Current
Video frame rate ≥60 Hz
Rate refresh ≥1200Hz
White balance brightness ≥6500cd
Operating temperature/Humidity -30℃~+45℃
Ingress protection Front:IP 67; Back:IP65
Input voltage 110-220V AC±10%
Gray scale /Color Display Colors ≥16.7N(Synchronize)
Brightness control Manual/Automatic
Input signal RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Control system PCTV+DVI video card+control card+fiber
MBTF >5000 hours
Life time >100,000 Hours
The rate <0.0002



P6 Waterproof RGB LED Module for Video Led Wall Outdoor 27777dots / ㎡ 6mm mudule 0

P6 Waterproof RGB LED Module for Video Led Wall Outdoor 27777dots / ㎡ 6mm mudule 1

P6 Waterproof RGB LED Module for Video Led Wall Outdoor 27777dots / ㎡ 6mm mudule 2







After-sale service



We promise we provide 2 years warranty for free maintain for our products and full life tracking service.

1. During the warranty period, we will repair the equipment free of charge unconditionally if the problem is caused by product quality or production and installation problem.

2. When the warranty expires. we continue to provide maintenance service for whole life of the equipment with relative service/material cost paid.
