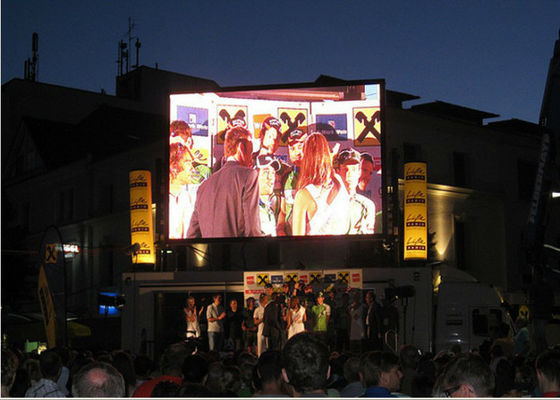

Customized Outdoor Advertising Led Display Full Color High Brightness

Customized Outdoor Advertising Led Display Full Color High Brightness

  • Customized Outdoor Advertising Led Display Full Color High Brightness
  • Customized Outdoor Advertising Led Display Full Color High Brightness
Customized Outdoor Advertising Led Display Full Color High Brightness
Product Details:
Place of Origin: China(mainland)
Brand Name: OEM/ODM
Certification: CE,FCC,ROHS ISO9001
Model Number: P6
Payment & Shipping Terms:
Minimum Order Quantity: 2 suqare meter
Price: Negotiation
Packaging Details: wooden case/ flight case packing
Delivery Time: 5--20 working days
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 8000sqm per month
Contact Now
Detailed Product Description
Pixels: 6mm LED Chip: Epistar
Pixel Density: 27777dots/sqm Power Supply: Meanwell
Life Span: 100000hours Cabinet Size: 960*960
High Light:

outdoor screen panels

,

outdoor led screen

Customized 1200Hz refresh rate 1/4 scan 10000 dots/sqm smd P6 P10 Electronic outdoor led screen IP65





Main features



1. CE,FCC,ROHS ISO9001 approved

2. High brightness: >6000nits, high refresh

3. Superior uniformity, good display effect

4. 2 years warranty, best after-sales service

5. Video, flash, animation, graphic, text available;

6. Installation structure drawing offered FOC;

7. Factory visiting and inspecting is welcome;

8. OEM service offered;

9. Models available:



Indoor led display-P2.5mm, P3mm, P4mm, P5mm, P6mm, P10mm, etc.

Outdoor led display-P5mm, P6mm, P8mm, P10mm, P16mm, etc.



Details



1. Brand new mask design makes the light from LEDs almost non-reflection.

2. Cabinet design of the module uses high temperature spraying technology to improve the anti-rust function greatly.

3. Use high quality LEDs with high luminous efficiency and low brightness decay to make the display stable

4. The flatness of module erection side is controlled within 0.2mm, so as to ensure the flatness of the whole led display

5. With a full range of anti-static measures, effectively reducing the damage to LED from the static, so as to control the death rate of the LED within five over one million each year

6. Advanced technology of production ensures the quality and lifetime of LED display

7. Good uniformity in color solves the problem of mosaic well

8. With wave-soldering process and green oil protection from Oxygen on PCB, preventing the circuit from moist and Oxygen, so as to increase the lifetime of LED display

9. Utilization rate of power supply is improved a lot, reducing the failure rate of the power supply

10. Using good quality silicon gel in the front and waterproof rubber in the rear to improve the waterproof performance of LED display

11. Applied to all kinds of severe environment outside because of its high reliability, high brightness and high performance on waterproof and dustproof beyond IP65.





Specification:





LED Specification
1 LED Chip Brand Epistar
2 Wave Length (nm) R: 625nm;
G: 525nm;
B: 470nm
3 Pixel Configuration 1R1G1B SMD 3 in 1
Module & Cabinet Specification
4 Physics Distance Between Pixels 6mm
5 Physics Pixel Density 27,777 Pixel/m²
6 Module Dimensions (W x H) 192mmx192mm
7 Physics Pixel / Module 32x 32=1024
8 Cabinet Dimensions ( W x H xT) 960mmx960mmx150mm(Customized)
9 Physics Pixel / Cabinet 160x 160=25600
10 Cabinet Weight 42kg
11 Cabinet Material Steel Cabinet / Aluminum Cabinet
12 Cabinet Frame Standard Frame
Lifting Frame (specially for rental use)
Screen Specification
13 Brightness >6000cd/m²
14 Viewing Distance (min, max) >6m
15 Power Consumption / Screen MAX : 1000w/m² ;
AVE: 300w/m² ;
16 Drive Mode 1/4 scan
17 Refresh Rate 300-3000 HZ adjustable
18 Frame Rate 60HZ
19 Display Flatness 0.5mm
20 Maintenance Back/Front maintenance
21 Led Life Span 100, 000 hours
22 Supply Voltage AC220V/50HZ, ± 10%;
AC110V/60HZ, ± 10%
23 Operating Temperature -30º C~+50º C
24 Operating Humidity 10%-90%
25 Storage Temperature -40º C~+60º C
26 Viewing Angle Horizontal: 120° ; Vertical: 120°
27 Grey Scale Red, green, blue each 16k
28 Display Colors 4096 Billion
29 IP Rating IP65
30 Aging Time in Factory More than 72 hours constantly
Control
31 The Software Nova/Linsn
32 System Supported Win 98 / 2000 / 2003 / XP / WIN7 / WIN10
33 Control Mode Synchronous / Asynchronous
34 Display Capability Flash, Video, Graphic, Text
35 Signal Supported RGB, VGA, DVI, etc.





Our Services



Pre-sales support

  1. We offer technical advice to you before buying our products.
  2. Help you to choose suitable products within budget with most economy benefit.
  3. Design the framework structure to install our led products with technical drawing.
  4. We offered software customization for your specific usage.

After-sales service

  1. We promise you more than just two years warranty service!
  2. We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
  3. We promise a life time follow-up service for all the equipment supplied by our company, including continuously improve of system functions and upgrade of system software.
  4. We offered training to you including operating and maintenance of our products.

About Training

  1. We offer training for free.

  2. You can send your engineer who has electronic and computer knowledge to our factory for the operation and maintenance training.

  3. We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too.

About Installation

  1. User's manual, instruction video, professional CAD installation drawing, and other needed engineering drawings will be provided.

  2. We only offer the drawings, and you can show the drawing to your local steel structure factory, and they will weld it for you at site. On one hand, it is not cost effective for you to ship the steel structure from China. On the other hand, we are impossible to offer you exact steel structure without welding at site.

About Maintenance

  1. Comcreating provides 1 percent spare parts freely, including LED module, power supply, fan, receiving card, LED lamps and other related parts.

  2. You can replace the broken one with the spare parts when problem happens, which will take about 5 minutes, and then send the broken ones back to our factory for fixing freely before you don't have enough spare parts for next maintenance.

  3. We offer lifetime maintenance and charge only for the raw materials after the guarantee period. Additional charges will be required if you want more spare parts
