6mm Pixel Pitch Indoor Full Color Led Display , Led Video Display Board 1R1G1B

Good quality SMD Led Screen for sales
Good quality SMD Led Screen for sales
This is my third time doing business with them, The quality of their led screen is very stable, and have a intimate after service!

—— Nick

I am mykola from Romania. doing business with them is just no worries. they are very considerate, this is what i am always finding

—— Mykola

I'm Online Chat Now

6mm Pixel Pitch Indoor Full Color Led Display , Led Video Display Board 1R1G1B

China 6mm Pixel Pitch Indoor Full Color Led Display , Led Video Display Board 1R1G1B supplier
6mm Pixel Pitch Indoor Full Color Led Display , Led Video Display Board 1R1G1B supplier 6mm Pixel Pitch Indoor Full Color Led Display , Led Video Display Board 1R1G1B supplier 6mm Pixel Pitch Indoor Full Color Led Display , Led Video Display Board 1R1G1B supplier

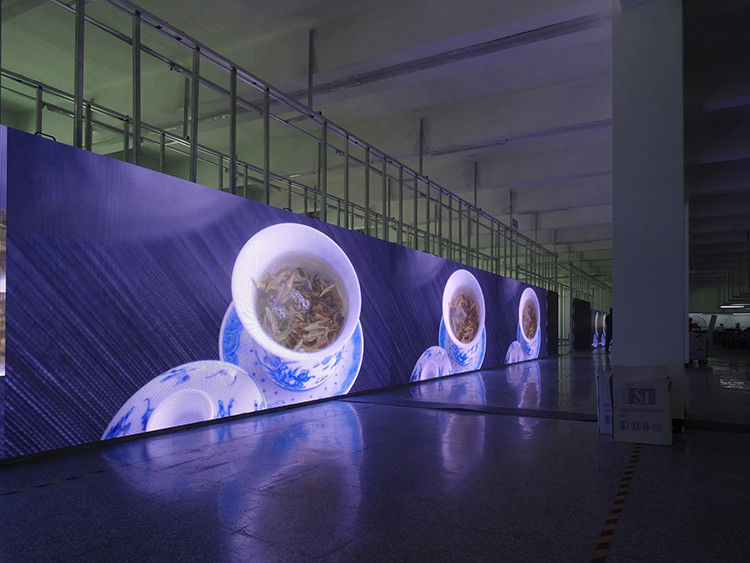

Large Image :  6mm Pixel Pitch Indoor Full Color Led Display , Led Video Display Board 1R1G1B

Product Details:

Place of Origin: GuangDong
Brand Name: Kailite
Certification: CE FCC ISO9001
Model Number: P6

Payment & Shipping Terms:

Minimum Order Quantity: 2 Square meter
Price: $610/Square meter
Packaging Details: flightcase packing
Delivery Time: 20-25work days
Payment Terms: T/T, L/C
Supply Ability: 10000Square meter
Contact Now
Detailed Product Description
Brightness: 1200cd/sqm Application: Indoor Advertising/Stage Back
Power Supply: 5v/40a 5v/60a Warranty: 2years
Cabinet Material: Die-casting Aluminum Cabinets / Iron Cabinet Module Size: 192mm*192mm
Cabinet Size: 576mmx576mm Color: Fullcolor

Thanks for your viewing ,if you are interested ,pls sent me inquiry ! ! !

P6 Indoor Full-Color video Advertising LED Display Board HD Screen:

Products Specification:



Item PH6
Color Full-color real pixels
Use environment Indoor
Pixel pitch 6mm
Module size 192*192
Physical density 27777dots/square meter
Pixel configuration 1R1G1B
LED chip SMD3528
Module resolution 32*32
Module power 25w
Recommended viewing distance ≥6
Best viewing angle H: 140°; V:140°
Maximum power consumption 620w
Average power consumption 25w
Cabinet size W576m×H576mm
Standard cabinet resolution 192*192
Driving method 1/16 Scan, Constant Current
Video frame rate ≥60 Hz
Rate refresh ≥1200Hz
White balance brightness ≥1200cd
Operating temperature/Humidity -30℃~+45℃
Ingress protection Back:IP43
Input voltage 110-220V AC±10%
Gray scale /Color Display Colors ≥16.7N(Synchronize)
Brightness control Manual/Automatic
Input signal RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Control system PCTV+DVI video card+control card+fiber
MBTF >500 hours
Life time >100,000 Hours
The rate

<0.0002



6mm Pixel Pitch Indoor Full Color Led Display , Led Video Display Board 1R1G1B6mm Pixel Pitch Indoor Full Color Led Display , Led Video Display Board 1R1G1B

6mm Pixel Pitch Indoor Full Color Led Display , Led Video Display Board 1R1G1B



what is the advantages of our P6 led display?

1. High quality:
our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate less than 0.0001. MTBF more than 10000 hours.we assure high brightness and long lifespan.



2. Perfect Display Effect:

High brightness and clearly led display effect with easy use control system which allow you easy become enviable led display experts.



3. Attractive Factory Price:

We are a professional manufacturer, has its own factories and production lines. Without middlemen and trading companies, our price is more competitive, quality is more reliable. Our price is more competitive, quality is more reliable.



4. Auto equipment:

kailite has several auto production lines equipment with Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, and the production of LED meets the demand of high quality standard LED display.



why choose us?



1. High quality:100% tested before shipping, Best quality LED chip tube the CREE, SILAN, OPTO, EPISTAR assuring high brightness and long life span. industry-leading



2. Strong productivity:50000 pieces per month, Shorter delivery time



3. Good price:our price is 10% lower than the market because of the introduction of full



automatic production line with the characteristics of reducing the cost of labor and management.



4. Light weight:aluminum cabinet greatly saving fright cost and conveniently installing.



5. Stable performance:our most basic guarantee:the aging time exceeding 24 hours. Malfunction



dot rate less than 0.0001. MTBF more than 1000 hours.



6. Supporting different formats of images and videos:Flash, WAV/MIDI, Videos from TV and other equipments.



8. Any questions can be answerd quickly within 24 hrs.



9. ODM and OEM accept(best service)



10. Product variety





Q: What is the brightness, viewing angle and wavelength of the LED?
A: Luminous Intensity is equal to the amount of luminous flux emitted into a very small solid angle at a defined angular orientation from the light source. The measurement for luminous intensity is the candela. Symbol is Iv.
Viewing Angle is the total cone angle in degrees encompassing the central, high luminous intensity portion of the LED beam from the peak to the off point where the LED intensity is 50% of the on intensity. This off point is known as theta one-half ( 1/2). Two times 1/2 is the LEDs' full viewing angle; however, light is visible beyond the1/2 point.
Wavelength is the distance between two points of corresponding phase and is equal to waveform velocity divided by frequency. It defines what color human eyes could recognize
Q: What is dominant wavelength? Please specify the ranges of wavelength in red, green and blue color respectively.
A: Dominant wavelength is defined as the best range of wavelength showing the most natural color recognized by human eyes. Researches indicate that fixed colors with wavelength of 620-630nm (red), 520-530nm (green) and 460-470nm (blue), in fact mixed in a particular proportion, can get the pure white. That is, in display field, people use luminous materials with above wavelength to make "compounded" white more natural.In order to get a good balance white led display, we specify the led colors with wavelength within 4nm for each color
Q: Which chip vendors are you buying from?
A: It depends on the Customer's requirement. We can purchase from Japan, Korea, Europe, USA. We are using chips mainly from Taiwan
Q: What is the chip size you're using for outdoor display? How about indoor display?
A: For outdoor display, we're using 12mil chip for red, 14mil for both green and blue. Regarding indoor display, 9mil for red, 12mil for green and blue are currently adopted
Q: How much will the brightness of LED drop down after 1000hrs?
A: Based on the result of aging test, the brightness decay of green LED is around 5%-8%, while blue is around 10%-14% and red is around 5%-8%



6mm Pixel Pitch Indoor Full Color Led Display , Led Video Display Board 1R1G1B

6mm Pixel Pitch Indoor Full Color Led Display , Led Video Display Board 1R1G1B

1.The price depends on the quantity. We can offer you the best competitive price at the market with the same even better quality

2. Your inquiry will be replied by well-trained and experienced staffs in 24 hours

3. Top Quality+Reasonable Price+Responsible After Service=Successful & Win

4. Help you design OEM&ODM or any your customized lightings and put into production

5. Distributorship are offered for your unique design and some our current models

6. Your sales area, ideas of design and all your private information will be well protected

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

shenzhen factory indoor P3 led display,stage screen,DJ background board

Thanks for your viewing ,if you are interested ,pls sent me inquiry ! ! !
