Place of Origin: | China |
Brand Name: | KAILITE |
Certification: | CE/UL/RoHS/ISO9001/FCC/CCC |
Model Number: | P2.5 |
Minimum Order Quantity: | 2 Square Meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Case Packing ; |
Delivery Time: | 18-22 work days |
Payment Terms: | T/T, Western Union, L/C |
Supply Ability: | 9000 Square Meters Per Month |
Cabinet Size: | 640mm*480mm*59mm | Cabinet Resolution: | 256*192 |
---|---|---|---|
Cabinet Materials: | Die Casting Aluminum | Refresh Rate: | 1920-3840Hz |
Brightness Control: | Manual/Automatic | Input Voltage: | 110-240V AC±10% |
Highlight: | 3840Hz Full Color Indoor LED Display,FCC Indoor Full Color LED Display,Full Color Indoor LED Display 640×480mm |

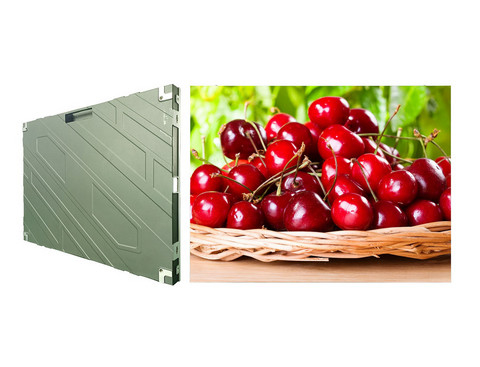

Item | P2.5 indoor led screen |
Color | Full color |
Use environment | Indoor |
Pixel pitch | 2.5mm |
Module size | 320*160mm |
Physical density | 160000dots/㎡ |
Pixel configuration | 1R1G1B |
LED chip | SMD2020 |
Module resolution | 128*64 |
Module power | 35w |
Recommended viewing distance | ≥2.5m |
Best viewing angle | H: 160°; V:160° |
Maximum power consumption | 700w |
Average power consumption | 360w |
Cabinet size | W640m×H480mm |
Standard cabinet resolution | 256*192 |
Driving method | 1/32Scan, Constant Current |
Video frame rate | ≥60 Hz |
Rate refresh | 1920-3840Hz |
White balance brightness | ≥800cd |
Operating temperature/Humidity | -30℃~+60℃ |
Ingress protection | IP43 |
Input voltage | 110-240V AC±10% |
Gray scale /Color | Display Colors ≥16.7N(Synchronize) |
Brightness control | Manual/Automatic |
Input signal | DVI, HDMI, SDI VGA etc. |
Control system | Novastar; Linsn etc. |
MBTF | >5000 hours |
Life time | >100,000 Hours |
The rate | <0.0002 |
Features of P2.5 indoor led display:
1) Available models for this series are P1.25, P1.53, P1.6, P1.86, P2, P2.5, P3.07, P4 etc.
2) Cabinet size: 640×480mm.
3) Die casting Aluminum cabinet which is more precise, flatness of led screen is great.
4) Full front service design.
5) Ultra thin, with just 59mm thickness.
6) High refresh rate and high resolution, Displaying good quality images.
Application of 640×480mm series indoor led screen:
· Business organizations
Supermarket, large-scale shopping malls, star -rated hotel, travel agencies.
· Financial organizations
Bank, insurance companies, post offices, hospital, schools
· Public place
Subway, airports, stations, parks, exhibition halls, stadiums, museums, commercial buildings, meeting room
· Entertainments
Movie theaters, clubs, stages
After-sell Service:
1) 2 yaers quality guarantee period for all parts
2) providing free frame structure drawing, as well as power and data cables wiring diagram.
easy for your to set up the ld screen .
3) Free remote control debuggine serice if you need
4) we will reponse you anytime in 7*24 houres if you have any question about the led screen,
5) Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again
6) Free technical training for how to use and handle the software.
FAQ:
1. Except the P2.5 model, are there any other models for this 640×480 series?
yes, for this indoor led screen series, we could make P1.25, P1.53, P1.6, P1.86, P2, P2.5, P3.07, P4
2. Are you factory? and your warranty?
yes we are 14 years leading factory, specialzied in led screen industry. we provide 2 years warranty and lifetime maintenance
3. Could i have a sample before place mass order?
Yes sure, sample is available for your test
4. What's your delivery time?
Wthin 18-20 work days after we receiving the deposit
5. Is it okay to print my logo on your product?
Yes that's okay for us, we provide free printing service
6. What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shipping or sea shipping
