| Place of Origin: | Shenzhen, China |
| Brand Name: | KAILITE |
| Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
| Model Number: | P4, P5 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 22-24 days |
| Payment Terms: | T/T, L/C, Western Union, D/A, D/P |
| Supply Ability: | 8000 square meters per month |
| Pixels: | 8mm 10mm | Function: | AD, Raiway Station Sign |
|---|---|---|---|
| Warranty: | 2 Years | Color: | Full Color |
| LED Type: | SMD1921 | Brightness: | 5500nits |
| Cabinet Weight: | 28kg | Module Resolution: | 80*40/64*32 |
| High Light: | 5500nits Outdoor Advertising Led Display,Iron Cabinet Outdoor Advertising Led Display,CCC Outdoor LED Screen Advertising |
||
High Brightness 5500nits Outdoor Advertising Led Display With Iron Cabinet
P4 P5 High Brightness with 5500nits Outdoor Led Screen Advertising
Description of Outdoor Led Screen Advertising
High definition, it can present more beautiful images. Special design for using in outdoor invironment, It has strong waterproof characteristics, Brightness suitableUnder strong sunshine, it can also keep high brightness and ultra high definition.
Specifications of Outdoor Led Screen Advertising
| Item | P4 | P5 |
| Pixel pitch | 4mm | 5mm |
| Module size | 320*160mm | 320*160mm |
| Module resolution | 80×40 | 64×32 |
| Physical density | 62500 dots/㎡ | 40000 dots/㎡ |
| LED type | SMD1921 | SMD1921 |
| Cabinet size | 960×960×mm | 960×960×mm |
| Cabinet resolution | 240×240 | 192×192 |
| Cabinet weight | 28kg | 28kg |
| Cabinet material | Die casting aluminum | Die casting aluminum |
| Maintenance way | Rear | Rear |
| Best viewing distance | ≥4m | ≥5m |
| Best viewing angle | H: 140°; V:140° | H: 140°; V:140° |
| Driving method (Constant Current) | 1/10Scan | 1/8 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥5500nits | ≥5500nits |
| Grey Level | 12-16bit | 12-16bit |
| Ingress protection | IP65 | IP65 |
| Average power consumption | 292w | 292w |
| Life Time | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 |
Features of Outdoor Led Screen Advertising
1) Cabinet size:960*960*108mm, Adopt iron cabinet.
2) High brightness more than 5500nits
3) High definition, it can reach 3840Hz.
4) High Ingress protection, it can be reach IP65.
5) Have a strong ability to the environment. Led screen could be working in -30℃-60℃

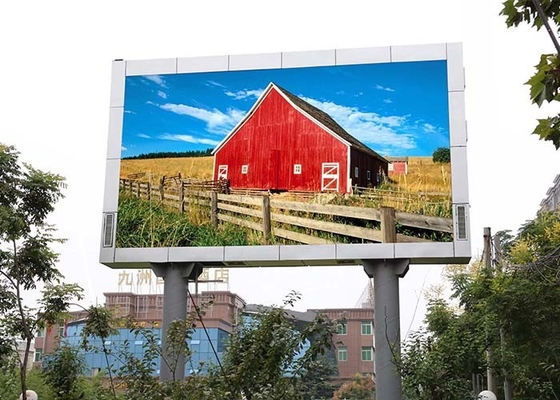

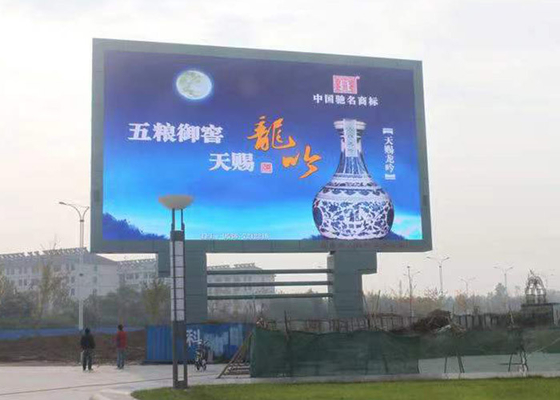

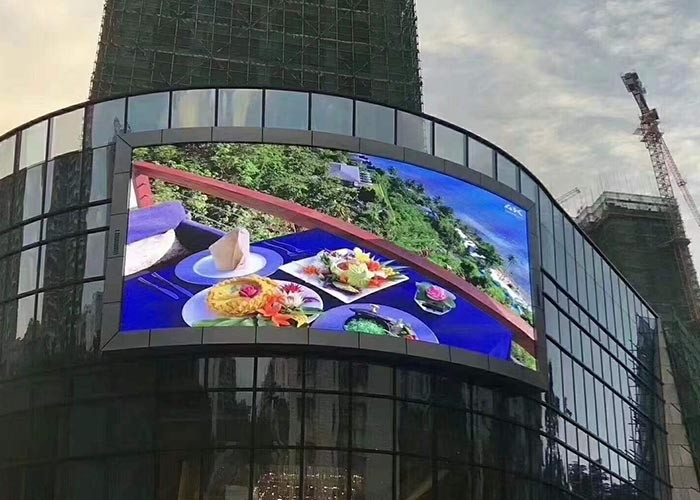

Product pictures
Application of Outdoor Led Screen Advertising
Outdoor fixed LED display can be used in different area, such as at stage, bank, mall, exhibition, stadium, airport .It can suitable for outdoor areas,even high bringhtness or heavy rainy days.
Why choose KAILITE?
1.We got these IOS9001 , IOS2000,FCC,RoHS,CE,CCC certificate .
2. We are factory, we can provide factory direct price, and ensure high quality
3. Rich experience in led industry. we can give you professional suggestions.
4. We support customize, producing led screen according to your requirement.
After-sell Service:
1) All parts are guaranteed for two years.
2) If you have any question about our led product, we will slove the problem as soon as possible.
3) Installation guid manual of the led screen will be provide for you. No need to worry about assembling the led screen.
4) Free technical training for how to use and handle the software.
FAQ:
1.Q: What information do i need to provide you, if i need an led screen?
A: you should teel me you need indoor or out led screen, a movable led screen or a fixed led sreen, and the size of led screen.
2.Q: How long is the warranty?
A: We offer 2 year warranty for all parts of led screen.
3:Q: How many people are there in your company?
about 100 people.
4. How long does your aging test take?
about 72 hours.
5. I'd like to visit the factory online, Can I?
yes, sure.
