Place of Origin: | Shenzhen, China |
Brand Name: | KAILITE |
Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
Model Number: | P4 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case |
Delivery Time: | 22-24 days |
Payment Terms: | T/T, L/C, Western Union, D/A, D/P |
Supply Ability: | 8000 square meters per month |
Tube Chip Color: | Full Color | Display Function: | Video |
---|---|---|---|
Brightness: | 6000cd/sqm | Warranty: | 2 Years |
Application: | Outdoor,outdoor Advertising Led Display Screen | Pixel Pitch: | 4mm |
Led Type: | SMD1921 | Screen Dimension: | 960mm*960mm |
Highlight: | Digital Outdoor Advertising Led Display,SMD3535 Outdoor Advertising Led Display,3840Hz Digital Advertising Display |
SMD3535 P4 Outdoor Advertising Led Display With 3840Hz Refresh Rate
SMD3535 P4 Outdoor Digital Advertising Display With 3840Hz High Refresh Rate
Description of 960*960mm series of outdoor fixed led screen
Outdoor fixed led billboard is a kind of high brightness led screen used for outdoor advertising display. It adopts advanced Led packing technology and high-precision assembly tecnology, and has the characteristics of good waterproof, earthquake resistance, high temperature resistance, low temperature and beautiful appearance.
Specifications of 960*960mm series of outdoor fixed led screens
Item | P4 |
Pixel pitch | 4mm |
Module size | 320*160mm |
Module resolution | 80×40 |
Physical density | 62500 dots/㎡ |
LED type | SMD3535 |
Cabinet size | 960×960×mm |
Cabinet resolution | 240×240 |
Cabinet weight | 36kg |
Cabinet material | Die casting aluminum |
Maintenance way | Rear |
Best viewing distance | ≥4m |
Best viewing angle | H: 140°; V:140° |
Driving method (Constant Current) | 1/10Scan, |
Video frame rate | ≥60 Hz |
Refresh rate | 1920-3840Hz |
Brightness | ≥6000nits |
Grey Level | 12-16bit |
Ingress protection | IP65 |
Max power consumption | 0.85kw |
Life Time | >100,000 Hours |
The rate | <0.0002 |
Features of 960*960mm series outdoor fixed led display
1) Cabinet size:960*960*108mm
2) High brightness more than 6000nits, even can be seen under the strong sunlights
3) Easy to Install: LED display screens are straightforward to install, and they can be dismantled easily for maintenance
4) Weather Resistant: Outdoor LED display screens are built to withstand harsh weather conditions such as rain, wind, and extreme temperatures.
5) Suitabale high and low temperature, led screen could be working in -30℃-60℃.

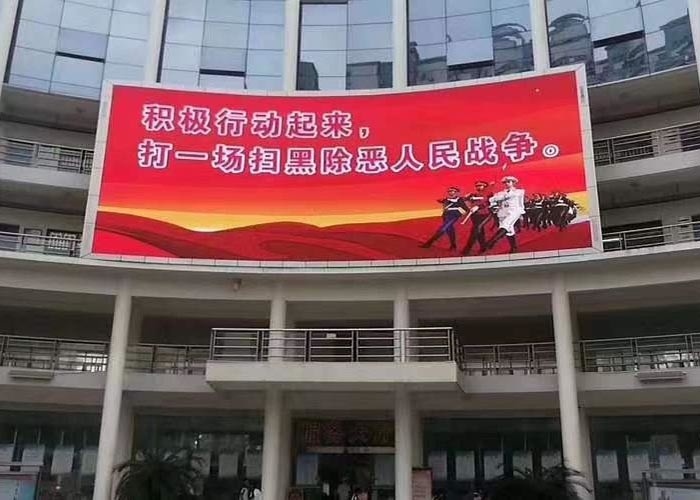

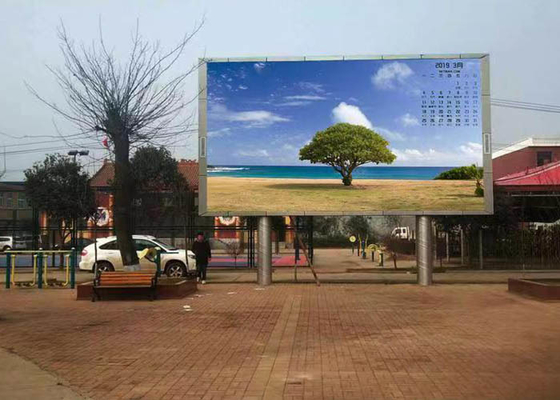

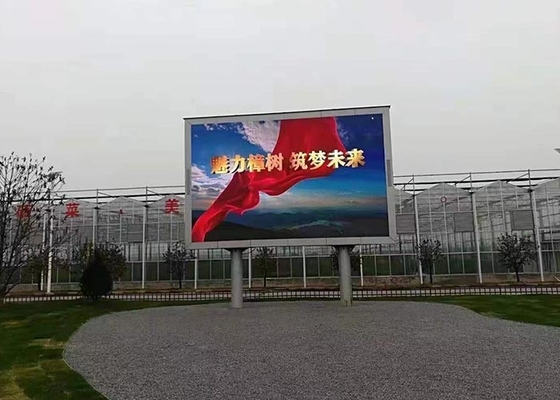

Product pictures
Application of 960*960mm series outdoor fixed led screen
Outdoor fixed LED display can be used in different outdoor area, such as at stage, bank, mall, hall, stadium, airport and waiting room and exhibition. It can suitable for outdoor areas,even high bringhtness or heavy rainy days.
Why choose KAILITE?
1. We are a 14 years leading manufacturer specialized in led display industry.
2. With 40 Japanese Panasonic and YAMAHA high-speed chips mounters, 24 hours Dust-free working plant.
3. Good service. we support ODM/OEM service.
4. competitive price.We are the original manufacturer, no middleman, more saving money.
Our Service:
1. We promise you more than just two years warranty service!
2. We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.
FAQ:
1.Q: can i visit your factory online?
A:Yes, sure!
2.Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
3. What is your payment method?
A: Our usually practice for payment is by T/T for the mass order. At least 30-50 % deposit in advance, and the balance should be paid before delivery.
4. what certifiates do you have?
we have IOS9001 , IOS2000,FCC,RoHS,CE,CCC.
