| Place of Origin: | Shenzhen, China |
| Brand Name: | KAILITE |
| Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
| Model Number: | P4 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 22-24 days |
| Payment Terms: | T/T, L/C, Western Union, D/A, D/P |
| Supply Ability: | 8000 square meters per month |
| Tube Chip Color: | Full Color | Display Function: | TV |
|---|---|---|---|
| Brightness: | 5500cd/sqm | Warranty: | 2 Years |
| Application: | Outdoor,outdoor Advertising Led Display Screen | Pixel Pitch: | 5mm |
| Led Type: | SMD1921 | Screen Dimension: | 960mm*960mm |
| High Light: | Full Color Outdoor Led Advertising Screen,SMD1921 Outdoor Led Advertising Screen,FCC Full Color Led Display |
||
SMD1921 P5 Outdoor Led Advertising Screen With 2 Years Warranty
SMD1921 P5 Outdoor Led Screen Advertising With 2 Years Warranty
Description of 960*960mm series of outdoor fixed led screen
Outdoor fixed led billboard is a kind of high brightness led screen used for outdoor advertising display. It adopts advanced Led packing technology and high-precision assembly tecnology, and has the characteristics of good waterproof, earthquake resistance, high temperature resistance, low temperature and beautiful appearance.
Specifications of 960*960mm series of outdoor fixed led screens
| Item | P5 |
| Pixel pitch | 5mm |
| Module size | 320*160mm |
| Module resolution | 192×192 |
| Physical density | 40000dots/㎡ |
| LED type | SMD1921 |
| Cabinet size | 960×960×mm |
| Cabinet resolution | 192×192 |
| Cabinet weight | 36kg |
| Cabinet material | Die casting aluminum |
| Maintenance way | Rear |
| Best viewing distance | ≥5m |
| Best viewing angle | H: 140°; V:140° |
| Driving method (Constant Current) | 1/8Scan, |
| Video frame rate | ≥60 Hz |
| Refresh rate | 1920-3840Hz |
| Brightness | ≥6000nits |
| Grey Level | 12-16bit |
| Ingress protection | IP65 |
| Max power consumption | 0.65kw |
| Life Time | >100,000 Hours |
| The rate | <0.0002 |
Features of 960*960mm series outdoor fixed led display
1) Cabinet: adopt iron material, it is cheaper than die casting aluminum cabinet, and support customized.
2) High brightness more than 5500nits, even can be seen under the strong sunlights
3) Easy to Install: ED screens offer high contrast and brightness, which makes them ideal for displaying dynamic content.
4) Weather Resistant: Outdoor LED display screens are built to withstand harsh weather conditions such as rain, wind, and extreme temperatures.
5) Suitabale high and low temperature, led screen could be working in -30℃-60℃.

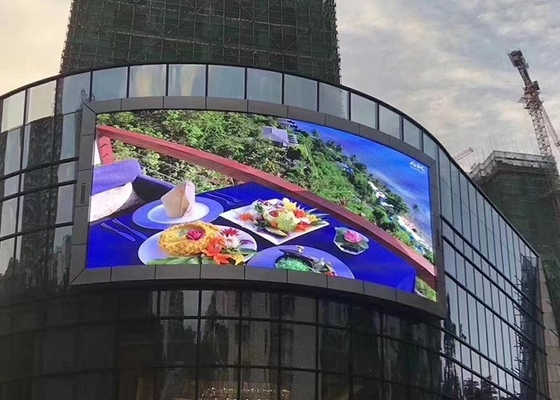

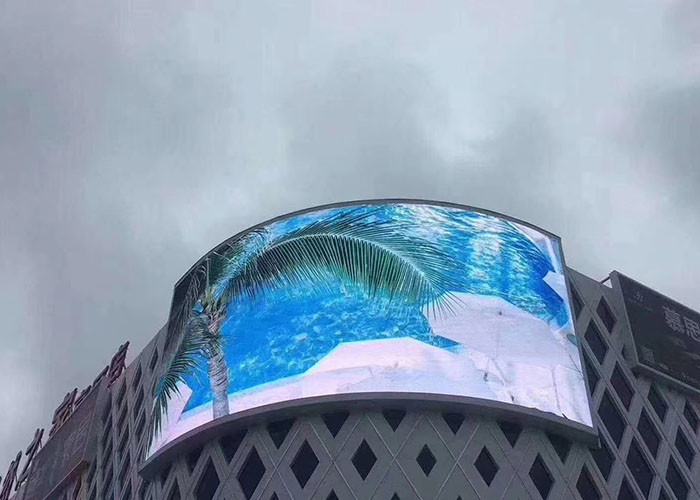

Product pictures
Application of 960*960mm series outdoor fixed led screen
Outdoor fixed LED display can be used in different outdoor area, such as at stage, bank, mall, hall, stadium, airport and waiting room and exhibition. It can suitable for outdoor areas,even high bringhtness or heavy rainy days.
Why choose KAILITE?
1. We are a 14 years leading manufacturer specialized in led display industry.
2. Implementation of the project on the screen of any complexity
3. Good service. we support ODM/OEM service.
4. Technical Support (from design to debug screen display)
Our Service:
1. We promise you more than just two years warranty service!
2. We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3..Customized design is available,OEM & ODM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
FAQ:
1.Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
2. Can your side support technical training?
A: Yes, we offer whole life technical training if customer needed in many ways like video calls, computer control, video shows, etc.
3. What is your payment method?
A: Our usually practice for payment is by T/T for the mass order. At least 30-50 % deposit in advance, and the balance should be paid before delivery.
4. what certifiates do you have?
we have IOS9001 , IOS2000,FCC,RoHS,CE,CCC.
