Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS ISO9001 UL FCC CCC |
Model Number: | P10 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | About 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 8000 square meters per month |
Product Name: | Stadium LED P10 Display | Pixel Pitch: | 10mm |
---|---|---|---|
Module Size: | 320*160mm | Cabinet Size: | 960*960mm |
Ingress Protection: | IP65 | Maintenance Way: | Rear |
Highlight: | Stadium Outdoor Advertising Led Display,IP65 Outdoor Advertising Led Display,Commercial Ads P10 LED Display |
SMD Stadium IP65 Outdoor Advertising Led Display For Commercial Ads
SMD Stadium LED P10 Display For Outside Commercial Ads Background
Description of Stadium LED Display
Stadium LED display pixel include 6.67mm, 8mm, 10mm, within these pixels,8mm, 10mm are the most hot-selling and highest cost-effective series. You can see it at all kinds of large sports stadium with banner words or scrolling brand names.
Stadium LED Dislay specification(P6.67 P8 P10)
Item | P6.67 | P8 | P10 |
Pixel pitch | 6.67mm | 8mm | 10mm |
Module size | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 48×24 | 40×20 | 32×16 |
Physical density | 22477 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
LED type | SMD3535 | SMD3535 | SMD3535 |
Cabinet size | 960×960×mm | 960×960×mm | 960×960×mm |
Cabinet resolution | 144×144 | 120×120 | 96×96 |
Cabinet material | Die casting aluminum | Die casting aluminum | Die casting aluminum |
Maintenance way | Rear | Rear | Rear |
Best viewing distance | ≥6.6m | ≥8m | ≥10m |
Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
Driving method (Constant Current) | 1/6 Scan | 1/5 Scan | 1/2 Scan, |
Video frame rate | ≥60 Hz | ||
Refresh rate | 1920-3840Hz | ||
Brightness | ≥5500nits | ≥6000nits | |
Grey Level | 12-16bit | ||
Ingress protection | IP65 | ||
Life Time | >100,000 Hours | ||
The rate | <0.0002 |
Features:
1. IP65, full waterproof, suit for outdoor enviroment.
2. High brightness(≥6000nits), can be clearly seen by the audience.
3. Use Novastar system.
4. Reliable strength cabinet structure.
5. Use good and reliable material such as LED lamp, bottom shell.

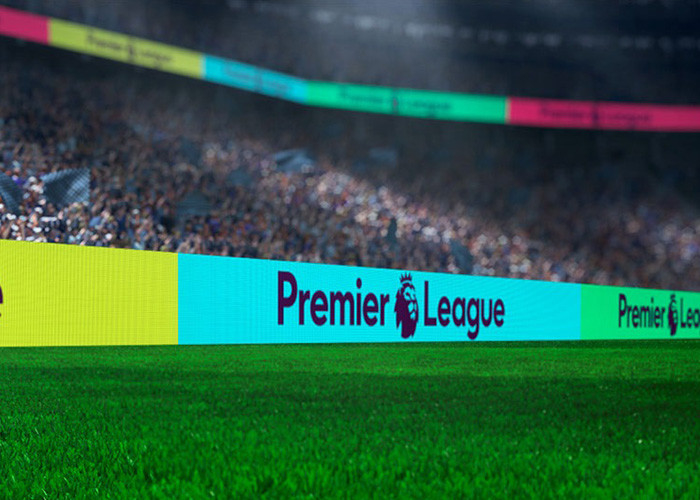

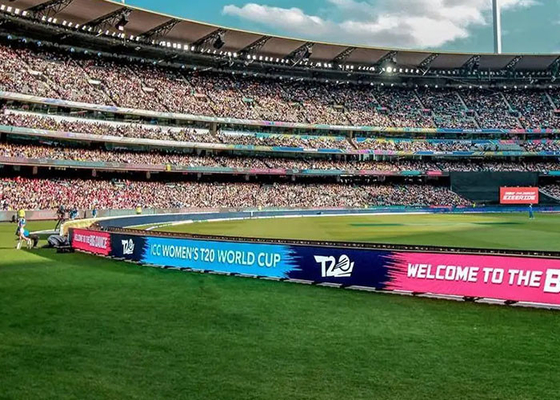

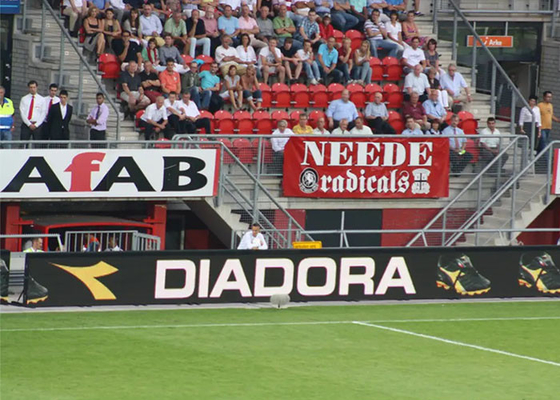

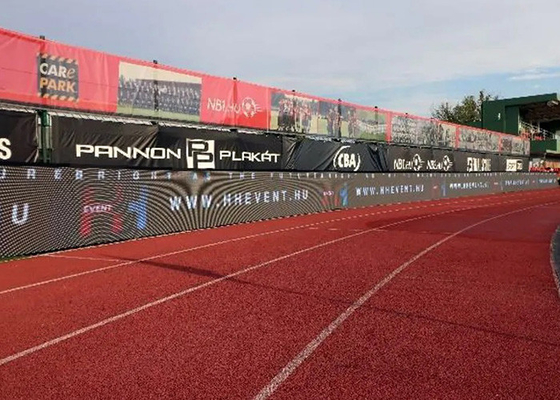

Applications of Stadium LED Display: all kinds of of sports stadium, for commercial ads, competition information, background etc.
Shipping and Package
After-sell Service:
1. On-line service.
2. Failure maintenance of LED panels.
3. Free remote control debuggine serice if you need.
4. We will reponse you anytime in 7*24 houres if you have any question about the led screen.
5. Providing controller and software manual, to help customer master all kinds of functions.
FAQ:
1. Are you a manufacturer or trading company?
We are a 14-years OEM/ODM manufacturer.
2. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.
3. When will you make the delivery?
Most time about 22-24 days, also depends on the destination country.
4. What technical supports can you offer?
We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory.
5. Could I get a sample before place mass order?
Yes sure, sample is available for your test.
