| Place of Origin: | Shenzhen, China |
| Brand Name: | KAILITE |
| Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
| Model Number: | P4 P5 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | wooden cases |
| Delivery Time: | about 22 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 8000 square meters per month |
| Module Size: | 320x160mm | Ingress Protection: | IP65 |
|---|---|---|---|
| Brightness: | >5500nits | Application: | TV Show And Advertising Led Screen |
| Best Viewing Angle: | >4m/>5m | Grey Level: | 12-16bit |
| Cabinmet Size: | 960*960mm | Led Lamp: | SMD1921 |
| High Light: | 1R1G1B Outdoor LED Sign Boards,ODM Outdoor LED Sign Boards,100% Waterproof Outdoor LED Display Board |
||
Full Waterproof 1R1G1B Outdoor LED Sign Boards TV Board 960*960 Cabinet
Outdoor Led Sign Boards P4 P5 1R1G1B Led TV Board 960*960 Cabinet
Description of Outdoor Led Sign Boards
Outdoor led sign boards is designed for outdoor environments, 100% Waterproof, the front and back of led screen are with waterproof. It make it can work normal in heavy rainy days. High refresh rate, it can reach 3840Hz. High brightness, more than 5500nits.
Specifications of Outdoor Led Sign Boards
| Item | P4 | P5 |
| Pixel pitch | 4mm | 5mm |
| Module size | 320*160mm | 320*160mm |
| Module resolution | 80×40 | 64×32 |
| Physical density | 62500 dots/㎡ | 40000 dots/㎡ |
| LED type | SMD1921 | SMD1921 |
| Cabinet size | 960×960×mm | 960×960×mm |
| Cabinet resolution | 240×240 | 192×192 |
| Cabinet material | Die casting aluminum | Die casting aluminum |
| Maintenance way | Rear | Rear |
| Best viewing distance | ≥4m | ≥5m |
| Best viewing angle | H: 140°; V:140° | H: 140°; V:140° |
| Driving method (Constant Current) | 1/10Scan | 1/8 Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥5500nits | ≥5500nits |
| Grey Level | 12-16bit | 12-16bit |
| Ingress protection | IP65 | IP65 |
| Life Time | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 |
| Average power consumption | 292W | 292W |
Features of Outdoor Led Sign Boards
1. High brightness and contrast: adopts high brightness LED lamp with high quality, It still has high quality image even under the strong sunlight.
2. More durable. adopt high quality led lamp and high quality IC with longer time.
3. Well dispaly effect: adopts high resolution display effect, which can show video clearly and high quality images.
4. High refresh rate, more than 3840Hz.

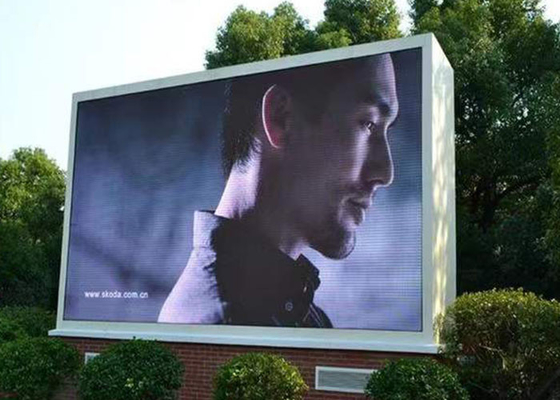

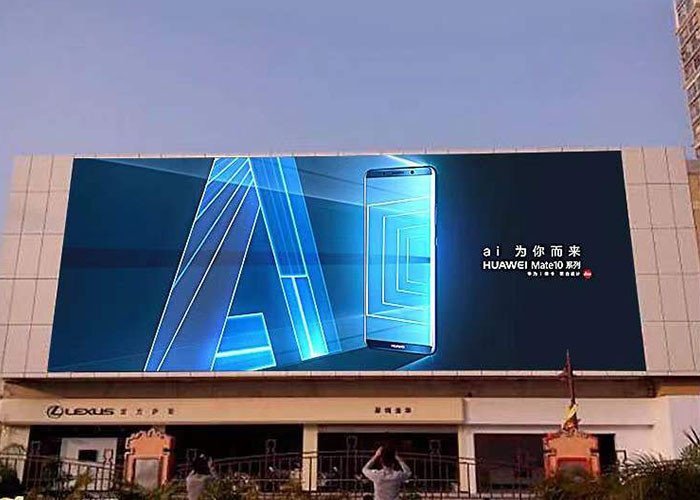

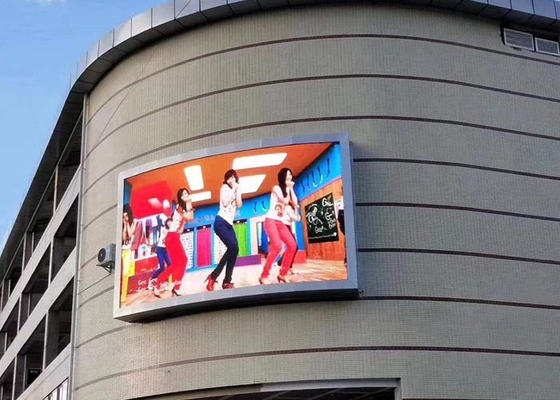

Application of Outdoor Led Sign Boards
Designed by outdoor environment. It can be suitable all kinds of extreme surrounding, It is widely used in outdoor advertising background, shopping mall, cultural tourism, sports events, truck, church and station.
Why choose KAILITE?
1. Professional led manufacturer with 14 years experience. We can give you professional advice if you need.
2. We think quality is the most important, we will do strict quality contorl to make sure the quality of our product.
3. Cost-effective. we have a factory in shenzhen, we can help you to save money.
4. Good service, we support OEM/ODM service. We will produce led screen or led module product based on your requirment.
After-sell Service:
1. Life time free maintenance and upgrade.
2. Quickly respons: we will respond you with 7*24 hours.
3. 2 years warranty for all parts of led screen.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
5. Special service for big project, such as stadium, exhibitions, squares and so on.
FAQ:
1. Is it ok to send me a sample?
A: Sure, free feel to contact us!
2. You warranty just provide for led screen, not including for the parts of led screen?
A: No, we provide two years warranty for all parts of the led screen.
3: What is your post-sale service?
We will offer instructions to guide you on installation, you can also contact us to have support.
4. How can we guarantee quality?
Always product a pre-production sample before mass production and do finally spection before shipment for every order.
5. How long is your production cycle?
About 22-24 days.
