P1.5 P1.8 Fine Pitch Led Video Wall Die Casting Aluminum 600*337.5mm

P1.5 P1.8 Fine Pitch Led Video Wall Die Casting Aluminum 600*337.5mm

P1.5 P1.8 Fine Pitch Led Video Wall Die Casting Aluminum 600*337.5mm
P1.5 P1.8 Fine Pitch Led Video Wall Die Casting Aluminum 600*337.5mm
P1.5 P1.8 Fine Pitch Led Video Wall Die Casting Aluminum 600*337.5mm
Product Details:
Place of Origin: Shenzhen, China
Brand Name: KAILITE
Certification: IOS9001 , IOS2000,FCC,RoHS,CE,CCC
Model Number: P1.2 P1.5 P1.8
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: wooden case&flight case
Delivery Time: 22-24 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 9000 square meters per month
Contact Now
Detailed Product Description
Color: 1R1G1B Led Lamp: SMD1212
Cabinet Material: Die-casting Aluminum Module Size: 150*168.75mm
Cabinet Size: 600*337.5mm IP: 43
Maintain Methods: Front Usage: Meeting
High Light:

Indoor Fine Pitch Led Video Wall

,

1R1G1B Fine Pitch Led Screen​

,

600*337.5mm Fine Pitch Led Display

P1.5 P1.8 Fine Pitch Led Video Wall Die Casting Aluminum 600*337.5mm



Gold Rito 16:9 Die Casting Aluminum 600*337.5mm, P1.5 P1.8 Fine Pitch Led Screen​

Quick details of Fine Pitch led screen
1. Cabinet size with 600*337.5*30mm

2. LED lamp SMD1212/SMD1515

3. Full front maintenance design with magenets, all components could be taken out from front side.



4. Easy and fast installation.

Specifications of Fine Pitch led screen

Item P1.2 P1.5 P1.8
Pixel pitch 1.25mm 1.56mm 1.875mm
Module size 150*168.75mm 150*168.75mm 150*168.75mm
Module resolution 120×135 96×108 80×90
Physical density 640000 dots/㎡ 410914dots/㎡ 284444 dots/㎡
LED type SMD1212 SMD1212 SMD1515
Cabinet size 600*337.5*30mm 600*337.5*30mm 600*337.5*30mm
Cabinet resolution 480*270 384*216 320*180
Cabinet material Die casting aluminum Die casting aluminum Die casting aluminum
Maintenance way Front Front Front
Best viewing distance ≥1.2m ≥1.5m ≥1.8m
Best viewing angle H: 160°; V:160° H: 160°; V:160° H: 160°; V:160°
Driving method (Constant Current) 1/45 Scan 1/54 Scan, 1/30 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥650nits ≥650nits ≥650nits
Grey Level 12-16bit 12-16bit 12-16bit
Ingress protection IP43 IP43 IP43
Life Time >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002




Features of Fine Pitch led screen
1. High color saturation, can show more uniform colors

2. Ultra high definition with>3840Hz high refresh rate

3. Die casting aluminun cabinet with size of 600*337.5*30mm with gold ratio 16:9

4. Easy and fast install

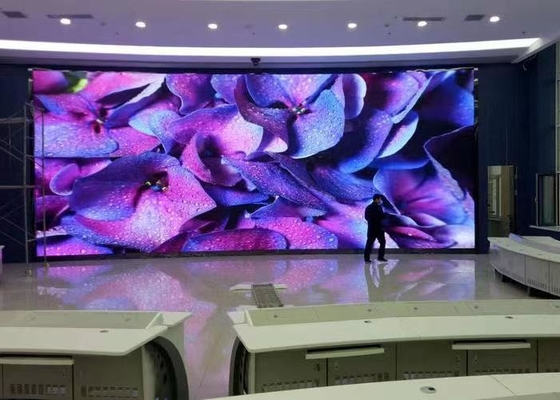

P1.5 P1.8 Fine Pitch Led Video Wall Die Casting Aluminum 600*337.5mm 0

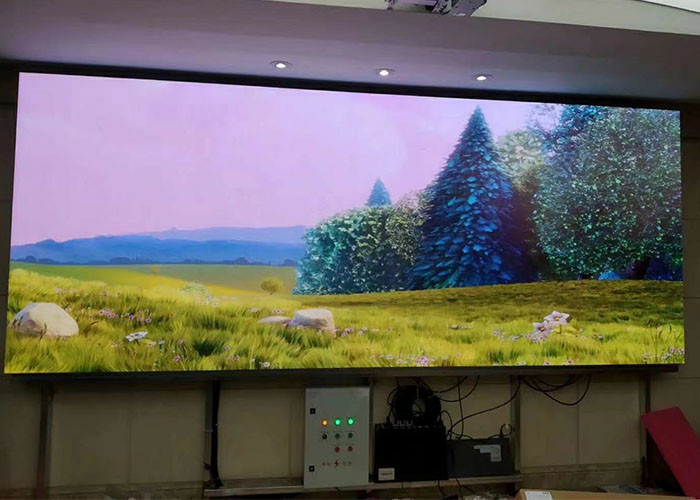

P1.5 P1.8 Fine Pitch Led Video Wall Die Casting Aluminum 600*337.5mm 1



Application of Fine Pitch led screen
Stage performance, bar entertainment, ceremonial wedding,conference, exhibition,musical theater.




Why choose KAILITE?
1. We are a 14 years leading manufacturer specialized in led display industry.

2. Competitive price. We are the original manufacturer, no middleman make the difference.

3. High quality. we have gained the certifircate of IOS9001 , IOS2000,FCC,RoHS,CE,CCC.

4. Good after-service. We provide 2 years warranty.



Our Service:
1) Ultra long warranty period can be reached 2 years.

2) Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again

3) Provide free spare parts.

4) Free technical training for how to use and handle the software.



FAQ:
1. Can I visit the factory?
Yes. please contact us in advance so we can arrange it.



2.Q: How long will it take to receive the goods?
About 22-24 days.


3. What's the payment term?

Our payment term is T/T.
