P10 HD Frameless Video Wall P8 Pixel Pitch Module Fixed Billboards

P10 HD Frameless Video Wall P8 Pixel Pitch Module Fixed Billboards

P10 HD Frameless Video Wall P8 Pixel Pitch Module Fixed Billboards
P10 HD Frameless Video Wall P8 Pixel Pitch Module Fixed Billboards
P10 HD Frameless Video Wall P8 Pixel Pitch Module Fixed Billboards
Product Details:
Place of Origin: Shenzhen, China
Brand Name: KAILITE
Certification: IOS9001 , IOS2000,FCC,RoHS,CE,CCC
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiatable
Packaging Details: Wooden case
Delivery Time: 22-24 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Pixel Pitch: 8mm 10mm Module Size: 320*160mm
LED Type: SMD3535 Cabinet Size: 960*960mm
Cabinet Material: Iron Ingress Protection: IP65
The Rate: <0.0002 Best Viewing Distance: >8m >10m
High Light:

Fixed HD Frameless Video Wall

,

SMD3535 Frameless Video Wall

,

Frameless Outdoor LED Billboard

P10 HD Frameless Video Wall P8 Pixel Pitch Module Fixed Billboards



P10 HD Frameless Video Wall, P8 Pixel Pitch Module Fixed Billboards



Quick Details of outdoor led advertisement board

1) Every module were sprayed with comformal coating. With characteristic of waterproof,moistureproof and dustproof.


2) brightness can be ajustable in different enviroments, more suitable different environments. It can present better video.


3) High temperature and low temperature resistance,Led billboard could be working in -30℃~60℃.


4) Ultra-wide angle of view.

Specifications of outdoor led advertisement board

Item P8 P10
Pixel pitch 8mm 10mm
Module size 320*160mm 320*160mm
Module resolution 40×20 32×16
Physical density 15625 dots/㎡ 10000 dots/㎡
LED type SMD3535 SMD3535
Cabinet size 960×960×mm 960×960×mm
Cabinet resolution 120×120 96×96
Cabinet material Die casting aluminum Die casting aluminum
Maintenance way Rear Rear
Best viewing distance ≥8m ≥10m
Best viewing angle H: 140°; V:140° H: 140°; V:140°
Driving method (Constant Current) 1/5 Scan, 1/2 Scan
Video frame rate ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz
Brightness ≥6000nits ≥6000nits
Grey Level 12-16bit 12-16bit
Ingress protection IP65 IP65
Life Time >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002





Features of outdoor led advertisement board

1. High brightness,more than 6000nits. It can even be seen under strong sunlight.



2. The visual distance is far, which is suitable for very high floors. It can also save space.



3. Easy and fast maintenance, rear service.



4. It amostly all formats videos and images.

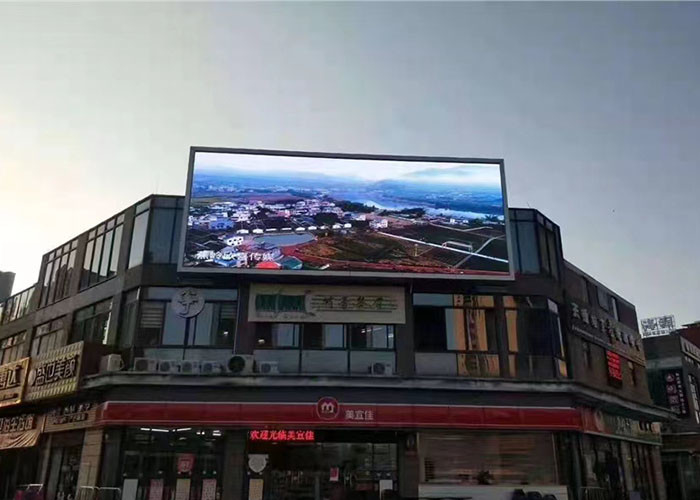

P10 HD Frameless Video Wall P8 Pixel Pitch Module Fixed Billboards 0

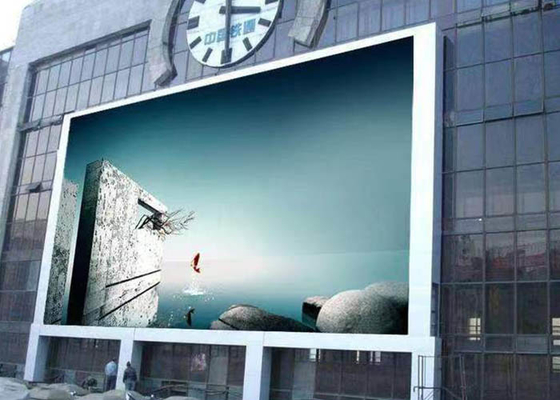

P10 HD Frameless Video Wall P8 Pixel Pitch Module Fixed Billboards 1





Application of outdoor led advertisement board

Mainly used in outdoor advertising media, government and enterprise engineering, cultural tourism, sports venues, image publicity, commercial real estate and other fields.





Why choose KAILITE?

1. We can provide technician guides for you, if you don't how to installation an led screen. This free.



2. We have strong production capacity with much experience for OEM/ODM service. can satisfy all of your requirements on LED screen.



3. More realiable: We have factory in Shenzhen, any time you can to visit our factory.



4. More efficient, our sales and engineers have many years experience in led screen industry, can fast reply and solve all your questions.





After-sell Service:

1) A two-year warranty


2) Quickly respond, we will handle with your problem on time.


3) Free remote control debuggine serice if you need



4) We support ODM/OEM service for you.



FAQ:

1.Q: How much the shipping cost will take?

It depends on your other and your country. tell me your quantity, i will ask the freight forwarder.



2.Q: Can we make any size of led display?
Nope, according the led module size or cabinet size.



3:Q: What is your payment terms?

EXW, 40% in advance, 60% before shipment.



4. I would like to ask that if it's possible to have my logo on the products?
Our company perfectly support customized logo service.



5. What's the lead time for mass order?

Normally, it takes about 20-35 days, depends on the order quantity.
