Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS ISO9001 FCC CCC UL |
Model Number: | P8 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | About 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram, Western Union |
Supply Ability: | 8000 square meters per month |
Pixel Pitch: | 8mm | Module Size: | 320*160mm |
---|---|---|---|
Cabinet Resolution: | 120*120 | Screen Dimension: | Customized Size |
Maintenance Way: | Rear | Color: | Full Color |
Brightness: | ≥5500nits | LED Type: | SMD3535 |
High Light: | Weatherproof Outdoor Led Video Wall,IP65 Outdoor Led Video Wall,Weatherproof Stadium LED Screens |
Weatherproof IP65 Outdoor Led Video Wall Stadium LED Screens
Weatherproof IP65 Stadium LED Screens For Outside Cushion Impact Surface
Quick details of P8 Stadium LED Screens
1. Cabinet size: 960×960mm
2. Input voltage: AC 110-220v±10%
3. Best viewing distance: ≥8m
4. Driving method: 1/5 Scan, Constant Current
5. Video frame rate: ≥60 Hz
Product details(P6.67 P8 P10):
Item | P6.67 | P8 | P10 |
Pixel pitch | 6.67mm | 8mm | 10mm |
Module size | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 48×24 | 40×20 | 32×16 |
Physical density | 22477 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
LED type | SMD3535 | SMD3535 | SMD3535 |
Cabinet size | 960×960×mm | 960×960×mm | 960×960×mm |
Cabinet resolution | 144×144 | 120×120 | 96×96 |
Maintenance way | Rear | Rear | Rear |
Best viewing distance | ≥6.6m | ≥8m | ≥10m |
Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
Driving method (Constant Current) | 1/6 Scan | 1/5 Scan | 1/2 Scan, |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥5500nits | ≥5500nits | ≥6000nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP65 | IP65 | IP65 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 |
Features of Stadium LED Display
1. Best viewing distance(over 8m), adapt to sports stadium.
2. With rough mask as shock absorber, good protection for the screen.
3. Long life time(100000 hours)
4. Wide viewing angle(H: 140°; V:140°), friendly to audience on the stage.

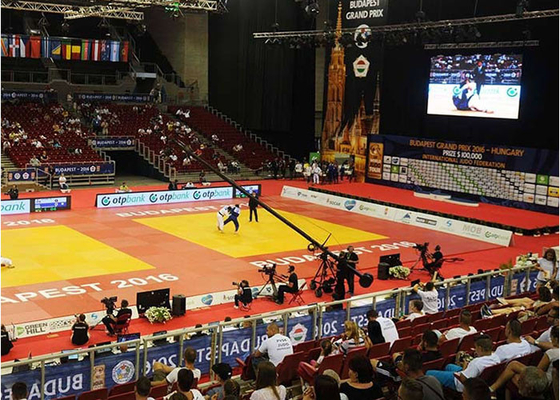

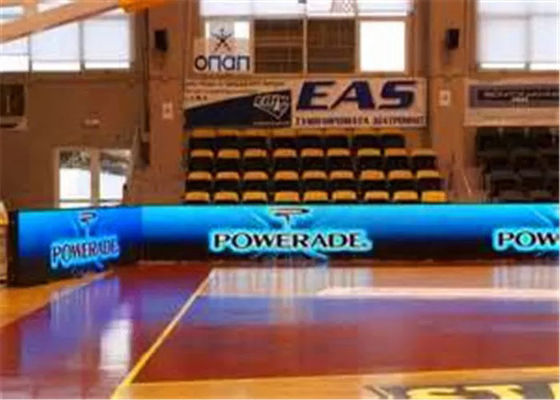

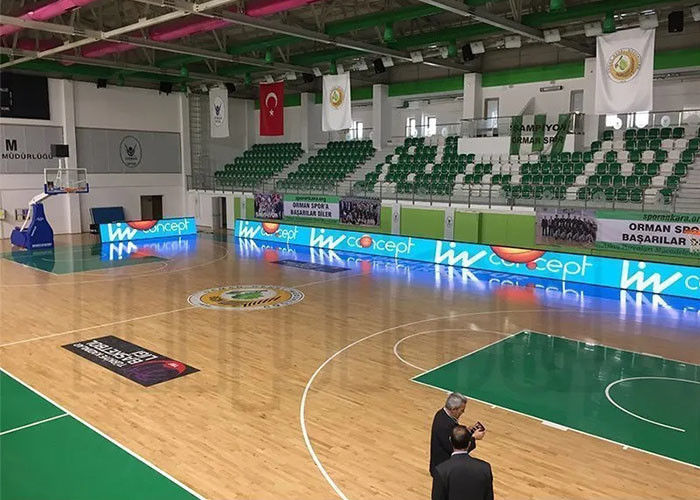

Applications of Stadium LED display: all kinds of sports stadium for advertising and competition information.
After-sell service:
1. 2 years warranty period.
2. Providing free frame structure drawing and power and data cables wiring diagram.
3. Free remote control debuggine serice if necessary for you.
4. Online service.
5. Free technical training for using the software.
FAQ:
1. Can you print my logo on the products?
Yes, of course. we have free printing service.
2. What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.
3. What’s your control system? How is it?
4. How long does it take for transportation?
About 22-24 days.
5. What is your terms delivery?
EXW, FOB, CFR, CIF, DDP, DDU...
Contact Person: Dalton
Tel: +8618314988649
