Place of Origin: | Shenzhen China |
Brand Name: | KAILITE |
Certification: | CE RoHS ISO9001 UL FCC CCC |
Model Number: | P5 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case/Flight case |
Delivery Time: | About 22-24 days |
Payment Terms: | T/T, L/C, D/A, D/P, MoneyGram, Western Union |
Supply Ability: | 8000 square meters per month |
Product Name: | P5 LED Digital SIgnage Screens | Module Size: | 320*160mm |
---|---|---|---|
Cabinet Size: | 960*960mm | Input Voltage: | AC 110-220v±10% |
Life Span: | >100,000 Hours | Maintenance Way: | Rear |
High Light: | Wall Mounted Outdoor Led Video Wall,Pole Support Outdoor Led Video Wall,SMD1921 Wall Mounted LED Screen |
Digital Signage Outdoor Led Video Wall Wall Mounted Pole Support Type
Wall Mounted/Pole Support Type LED Digital Signage Screens P4 P5 P8 P10
Quick details of P5 LED Digital Signage Screens
1. Physical density: 40000 dots/㎡
2. LED type: SMD1921
3. Defective rate: <0.0002
4. Life Time: >100,000 Hours
5. Best viewing distance: ≥4m
Product Specification(P4 P5 P8 P10)
Item | P4 | P5 | P8 | P10 |
Pixel pitch | 4mm | 5mm | 8mm | 10mm |
Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
Module resolution | 80×40 | 64×32 | 40×20 | 32×16 |
Physical density | 62500 dots/㎡ | 40000 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
LED type | SMD1921 | SMD1921 | SMD3535 | SMD3535 |
Cabinet size | 960×960×mm | 960×960×mm | 960×960×mm | 960×960×mm |
Cabinet resolution | 240×240 | 192×192 | 120×120 | 96×96 |
Maintenance way | Rear | Rear | Rear | Rear |
Best viewing distance | ≥4m | ≥5m | ≥8m | ≥10m |
Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
Driving method (Constant Current) | 1/10Scan | 1/8 Scan | 1/5 Scan, | 1/2 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥5500nits | ≥5500nits | ≥6000nits | ≥6000nits |
Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
Ingress protection | IP65 | IP65 | IP65 | IP65 |
Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
Features of LED Digital Signage Screens
1. Custom made according to clients' demand.
2. Low power consumption.
3. Waterproof design, low breakdown rate in rainy day.
4. High brightness(≥5500nits), keep clear in direct sunlight.
5. Remote control by wifi/SD card.

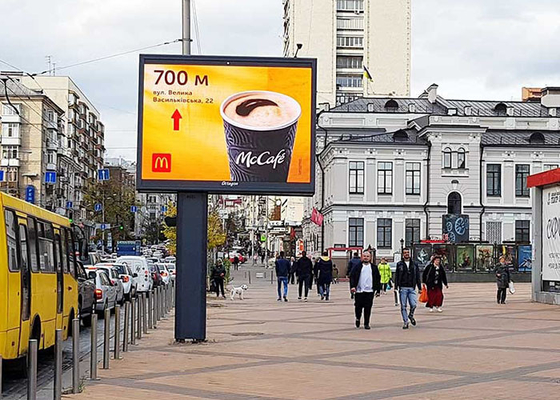

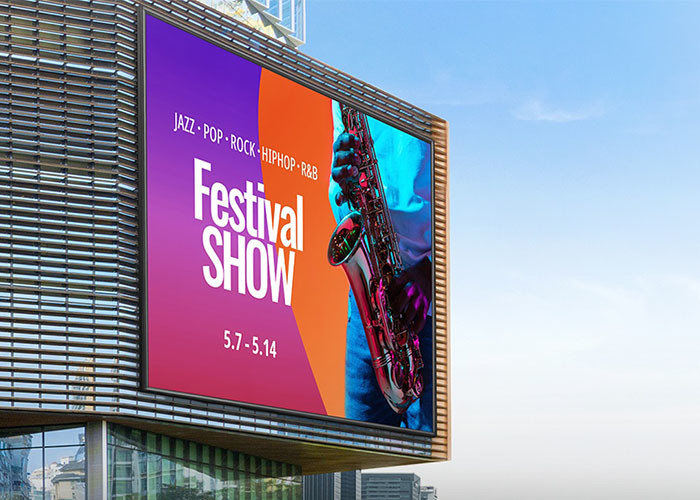

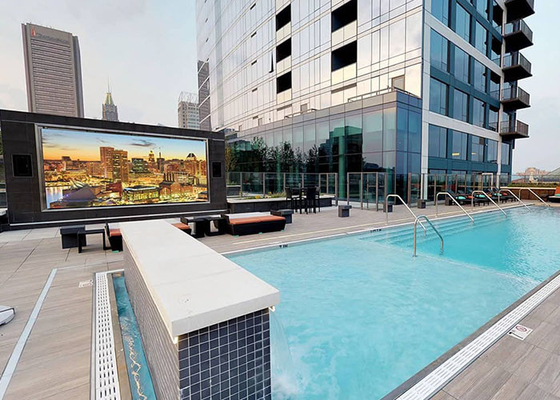

Applications of LED Digital Signage Screens
LED Digital Signage Screens are mostly used for advertising. In modern cities, there are a lot of sites placing LED sign. if you are individual or small user, you could control the advertising content by cellphone or computer by wifi. if you are an advertising company using advertisements in multiple locations, you can control all screens by computer and paid software, which is really convenient and save labor costs.
After-sell service:
1. Free remote control debuggine serice which can timely solve your problems when using the screen.
2. Failure maintenance of LED panels.
3. Providing controller and software manual, to help customer master all kinds of functions.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
FAQ:
1. Do you test all your goods?
Yes, we will do aging test of all parts for 2-3 days before shipment.
2. Could I get a sample?
Yes sure, sample is available for your test.
3. What is your terms of payment?
T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
4. This is the first time to import, I don’t know how to do.
We offer DDP door to door service, you just need to pay us, then wait to receive order.
5. What's your factory location?
We are in Shenzhen China, welcome to visit our company and factory.
