Place of Origin: | Shenzhen, China |
Brand Name: | KAILITE |
Certification: | IOS9001 , IOS2000,FCC,RoHS,CE,CCC |
Model Number: | P10 P8 |
Minimum Order Quantity: | 2 square meters |
---|---|
Price: | Negotiatable |
Packaging Details: | Wooden case |
Delivery Time: | 22-24 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 8000 square meters per month |
Pixel Pitch: | 8mm 10mm | Module Size: | 320*160mm |
---|---|---|---|
LED Type: | SMD3535 | Cabinet Size: | 960*960mm |
Cabinet Material: | Iron | Ingress Protection: | IP65 |
The Rate: | <0.0002 | Best Viewing Distance: | >8m >10m |
High Light: | Waterproof Outdoor Led Message Signs,Iron Cabinet Outdoor Led Message Signs,Waterproof IP65 Wifi Led Signs |
100% Waterproof P8 Outdoor Led Message Signs Iron Cabinet Material
100% Waterproof P10 Wifi Led Signs, P8 Outdoor Led Message Signs
Quick Details of outdoor led advertisement board
1) Every module were sprayed with comformal coating. With characteristic of waterproof,moistureproof and dustproof.
2) High brightness>6000nits, it could be even seen clear under the strong sunlight, brightness can be ajustable in different enviroments, more suitable different environments.
3) High temperature and low temperature resistance,Led billboard could be working in -30℃~60℃.
4) Full waterproof, the front and back of led screen are waterproof.
Specifications of outdoor led advertisement board
Item | P8 | P10 |
Pixel pitch | 8mm | 10mm |
Module size | 320*160mm | 320*160mm |
Module resolution | 40×20 | 32×16 |
Physical density | 15625 dots/㎡ | 10000 dots/㎡ |
LED type | SMD3535 | SMD3535 |
Cabinet size | 960×960×mm | 960×960×mm |
Cabinet resolution | 120×120 | 96×96 |
Cabinet material | Die casting aluminum | Die casting aluminum |
Maintenance way | Rear | Rear |
Best viewing distance | ≥8m | ≥10m |
Best viewing angle | H: 140°; V:140° | H: 140°; V:140° |
Driving method (Constant Current) | 1/5 Scan, | 1/2 Scan |
Video frame rate | ≥60 Hz | ≥60 Hz |
Refresh rate | 1920-3840Hz | 1920-3840Hz |
Brightness | ≥6000nits | ≥6000nits |
Grey Level | 12-16bit | 12-16bit |
Ingress protection | IP65 | IP65 |
Life Time | >100,000 Hours | >100,000 Hours |
The rate | <0.0002 | <0.0002 |
Features of outdoor led advertisement board
1. High brightness,more than 6000nits. It can even be seen under strong sunlight.
2. The visual distance is far, which is suitable for very high floors. It can also save space.
3. Easy and fast maintenance, rear service.
4. It amostly all formats videos and images.

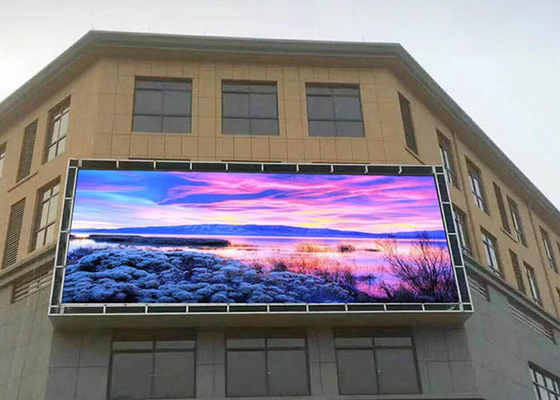

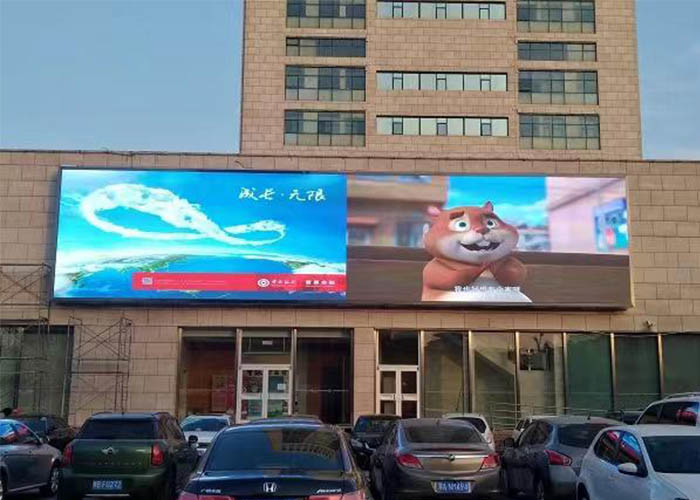

Application of outdoor led advertisement board
Mainly used in outdoor advertising media, government and enterprise engineering, cultural tourism, sports venues, image publicity, commercial real estate and other fields.
Why choose KAILITE?
1) Most competitive factory direct prices, 10%-20% lower
2) Dual checking to guarantee the quality, QC inspection on whole production process,
Sales checking finally before delivery
3) Lead time is guaranteed with 12000 square meters strong monthly procution capacity.
4) Strong technical support, makes you buy with confidence.
After-sell Service:
1) A two-year warranty
2) Quickly respond, we will handle with your problem on time.
3) Free remote control debuggine serice if you need
4) We support ODM/OEM service for you.
FAQ:
1.Q: I want to have an sample, can you provide?
A:Yes sure, sample is available for your test
2.Q: How long is the warranty of your led display?
A:2 year.
3:Q: Do you give any discount?
I'll surely try my best to help you get those with the best price ans good service at the same time.
4.Q: Do you give any discount?
I'll surely try my best to help you get those with the best price ans good service at the same time.
5.Q: How long will it take to receive the goods?
About 23 days.
