UHD P1.538 Indoor AD Curved Soft LED Display With High Brightness

UHD P1.538 Indoor AD Curved Soft LED Display With High Brightness

UHD P1.538 Indoor AD Curved Soft LED Display With High Brightness
UHD P1.538 Indoor AD Curved Soft LED Display With High Brightness
UHD P1.538 Indoor AD Curved Soft LED Display With High Brightness
Product Details:
Place of Origin: Shenzhen, China
Brand Name: KAILITE
Certification: IOS9001 , IOS2000,FCC,RoHS,CE,CCC
Model Number: P1.538 P2.5 P3 P4 P5
Payment & Shipping Terms:
Minimum Order Quantity: 2 square meters
Price: Negotiation
Packaging Details: carton/ wooden case/fight case
Delivery Time: about 22 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Western Union
Supply Ability: 9000 square meters per month
Contact Now
Detailed Product Description
Usage: Indoor Warranty: 2 Years
Driving Method: 1/53 Scan Life Span: 10000hours
Color: 1R1G1B Led Type: SMD1010
Refresh Rate: 3840Hz Best Viewing Angle: 1.538
High Light:

Curved Soft LED Display

,

High Brightness Soft LED Display

,

UHD P1.538 Curved LED Display

P1.538 Curved Soft LED Display with High Brightness & UHD for Indoor AD





Description of soft led module

High flexible, it can bend forward and backward. this module has a small spacing and high physical density, which can present a very beatiful picture. Made of flexible materials, it can fit buildings of any shape.





Specifications of soft led module

Item P1.538 P3 P4 P5
Pixel pitch 1.538mm 3mm 4mm 5mm
Module size 320*160mm 240*120mm 320*160mm 320*160mm
Module size 208*104 80*40 80*40 64*32
Physical density 422753 dots/㎡ 111111 dots/㎡ 62500 dots/㎡ 40000 dots/㎡
LED type SMD1010 SMD2020 SMD2020 SMD2020
Module power 18w 18w 18w 18w
Best viewing distance ≥1.5m ≥3m ≥4m ≥5m
Best viewing angle H: 160°; V:160° H: 160°; V:160° H: 160°; V:160° H: 160°; V:160°
Driving method (Constant Current) 1/53 Scan 1/20 Scan 1/20 Scan 1/16 Scan
Video frame rate ≥60 Hz ≥60 Hz ≥60 Hz ≥60 Hz
Refresh rate 1920-3840Hz 1920-3840Hz 1920-3840Hz 1920-3840Hz
Brightness ≥800nits ≥800nits ≥800nits ≥800nits
Grey Level 12-16bit 12-16bit 12-16bit 12-16bit
Ingress protection IP43 IP43 IP43 IP43
Life Time >100,000 Hours >100,000 Hours >100,000 Hours >100,000 Hours
The rate <0.0002 <0.0002 <0.0002 <0.0002







Features of soft led module

1. led flexible screen can be bent at will.



2. Ultra thin and light weigh, very suitable for hagging.



3. Save energy, lower consumption and long life.



4. Suit customize, can be spliced according to the needs of customers.



UHD P1.538 Indoor AD Curved Soft LED Display With High Brightness 0

UHD P1.538 Indoor AD Curved Soft LED Display With High Brightness 1



Application of soft led module

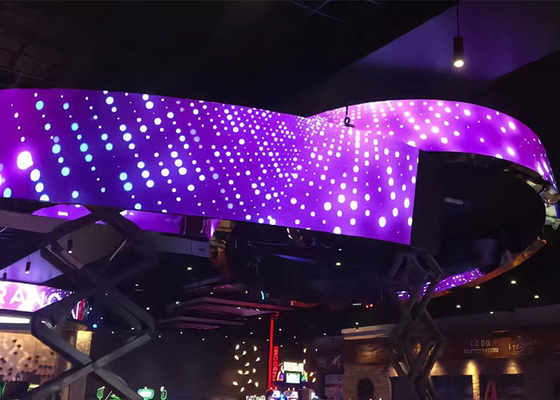

This modules has high flexibility. Not limited by direction, size and building shape.Soft led screen is widely used in shopping mall, musueum, college and medical treatment.





Why choose KAILITE?

1. We have 14 years exprience in led screen area. We specialist in this area.



2. strong production capacity, producing 9000 square led display every month. lead time will be guaranteed.



3. Fast response. we are online 24 hours, welcome to consult.



4. Using Japanese machines to produce products, the quality is more guaranteed.





After-sell Service:
1) 2 years quality guarantee period for all parts. Under the nomal use, If there any product problems during the period, please send them for repair.


2) providing free frame structure drawing, as well as power and data cables wiring diagram.
easy for your to set up the led screen.

3) we will debugging the softwere before shipping, no need debug again.

4) we will reponse you anytime in 7*24 houres if you have any question about the led screen.

5) Providing customer with the loading program, so they can use as soon as they install the led screen,don't need to debug again

6) Free technical training for how to use and handle the software.





FAQ:

1.  What's the delivery time?

 Standard delivery time is 15 working days. If there is stock, we could ship within 7 days. Feel free to tell if you have urgent case.



2. How long is the warranty?
We offer 2 year warranty and  liftime maintenance.



4.  Do you have any certificates?

Yes, the certificates we have is CCC, CE, FCC.





5. What's the payment term?

Our payment term is T/T. We also accept Western Union, L/C, etc.
