SMD3535 P10 Giant Led Screen, P8 Waterproof Outdoor Advertising Led Display
Description of 960*960mm series of outdoor led screen
outdoor led digital billboards pixel include 4mm, 5mm, 6.67mm, 8mm, 10mm, within these pixels, 4mm, 5mm, 6.67mm are the most hot-selling and highest cost-effective series. You can use it on car for advertising or fixed in some place as billboard or on building.
Specifications of 960*960mm series of outdoor led screens
| Item |
P4 |
P5 |
P8 |
P10 |
| Pixel pitch |
4mm |
5mm |
8mm |
10mm |
| Module size |
320*160mm |
320*160mm |
320*160mm |
320*160mm |
| Module resolution |
80×40 |
64×32 |
40×20 |
32×16 |
| Physical density |
62500 dots/㎡ |
40000 dots/㎡ |
15625 dots/㎡ |
10000 dots/㎡ |
| LED type |
SMD1921 |
SMD1921 |
SMD3535 |
SMD3535 |
| Cabinet size |
960×960×mm |
960×960×mm |
960×960×mm |
960×960×mm |
| Cabinet resolution |
240×240 |
192×192 |
120×120 |
96×96 |
| Cabinet weight |
25kg |
25kg |
25kg |
25kg |
| Cabinet material |
Die casting aluminum |
Die casting aluminum |
Die casting aluminum |
Die casting aluminum |
| Maintenance way |
Rear |
Rear |
Rear |
Rear |
| Best viewing distance |
≥4m |
≥5m |
≥8m |
≥10m |
| Best viewing angle |
H: 140°; V:140° |
H: 140°; V:140° |
H: 140°; V:140° |
H: 140°; V:140° |
| Driving method (Constant Current) |
1/10Scan |
1/8 Scan |
1/5 Scan, |
1/2 Scan |
| Video frame rate |
≥60 Hz |
≥60 Hz |
≥60 Hz |
≥60 Hz |
| Refresh rate |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
1920-3840Hz |
| Brightness |
≥5500nits |
≥5500nits |
≥6000nits |
≥6000nits |
| Grey Level |
12-16bit |
12-16bit |
12-16bit |
12-16bit |
| Ingress protection |
IP65 |
IP65 |
IP65 |
IP65 |
| Max power consumption |
0.85kw |
0.85kw |
0.85kw |
0.85kw |
| Life Time |
>100,000 Hours |
>100,000 Hours |
>100,000 Hours |
>100,000 Hours |
| The rate |
<0.0002 |
<0.0002 |
<0.0002 |
<0.0002 |
Features of 960*960mm series outdoor led display
1) High Brightness: Brightness> 5500nits. People can see the contents of the screen clearly under outdoor strong light.
2) Weatherproof: These screens are designed to withstand various weather conditions, including rain, wind, extreme temperatures, and UV rays. They have a high level of IP protection to ensure durability and longevity.
3) High contrast: can present richer and more delicate colors.
4) Energy Efficient: LED technology used in outdoor screens is energy-efficient, reducing power consumption and operating costs.

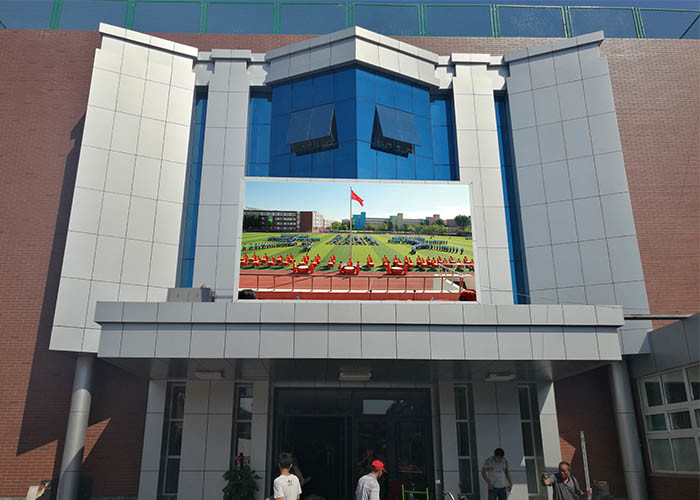

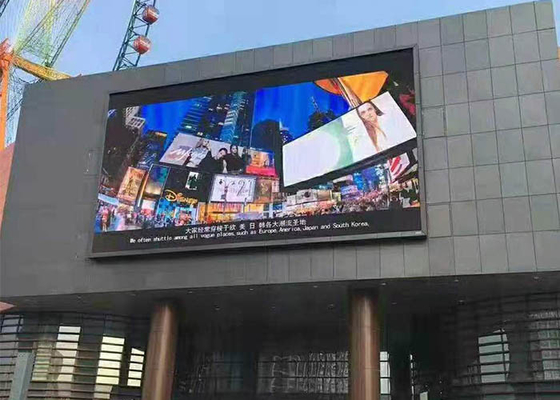

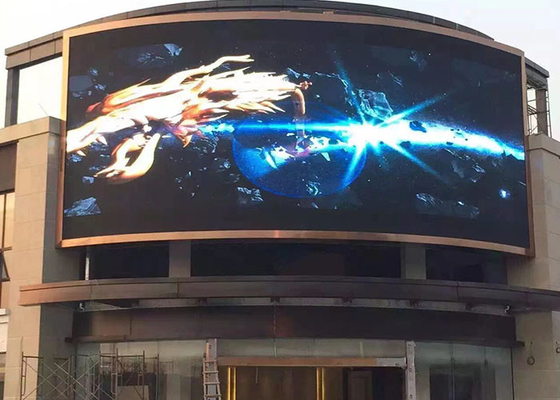

Product pictures
Application of 960*960mm series outdoor led screen
Outdoor fixed LED display can be used in different area, such as at stage, bank, mall, exhibition, stadium, airport .It can suitable for outdoor areas,even high bringhtness or heavy rainy days.
Why choose KAILITE?
1. We are a 14 years leading manufacturer specialized in led display industry.
2. High quality, we use high quality row materials, longer service life.
3. Good service. we support ODM/OEM service. and good pre-sales and after-sales service.
4. Direct price. If you place order for us, the factory price will be provide to you.
After-sell Service:
1) Free accesories and spare parts will be sent to you, when you place an order.
2) If you have any questions, we will reply you on time.
3) Installation guid manual of the led screen will be provide for you. No need to worry about assembling the led screen.
4) Two years warranty for all parts of your order, during the warranty period, if there any issue, we will repair and replace it for free for your order.
FAQ:
1.Q: How much the shipping cost will take?
It depends on your order and your country. tell me your quantity, i will ask the freight forwarder.
2.Q: What is the warranty of your led display?
A: 2 years for all parts of led screen.
3:Q: What is your payment terms?
EXW, 40% in advance, 60% before shipment. It is negotiable, At least 30% deposite.
4. Can i place an sample other to check the details and the fuunction of the led screen?
Yes, sure.
5. What's the lead time for mass order?
Normally, it takes about 18-20 days, it depends on the order quantity.
