Name: P10 Outdoor LED Display Module 10mm Pixel Pitch 10000cd/sqm
Brand: SHENZHEN KAILITE OPTOELECTRONIC TECHNOLOGY CO., LTD
SKU: P10 outdoor
Price: 400.00 USD
Availability: InStock

Home Products Outdoor Advertising Led Display

P10 Outdoor LED Display Module 10mm Pixel Pitch 10000cd/sqm

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Kailite
Model Number:	P10 outdoor

Payment & Shipping Terms:

Minimum Order Quantity:	2

Contact Now

Detailed Product Description

Pixel Pitch:	10mm	Module Size:	320*160mm
Physical Density:	10000dots/square Meter	Pixel Configuration:	1R1G1B
LED Chip:	SMD3535	Module Resolution:	32*16
Module Power:	45w	Viewing Angle:	H: 120°; V:120°
Maximum Power Consumption:	850w	Average Power Consumption:	420w
Cabinet Size:	W960m×H960mm	Cabinet Resolution:	96*96
Weight:	38kg/panel	Operating Temperature:	-30℃~+45℃
Input Voltage:	110-220V AC±10%
Highlight:	P10 outdoor LED display module , 10mm pixel pitch LED display , 10000cd/sqm outdoor advertising display

P10 RGB 10mm LED Outdoor Display Module

Product Attributes

Attribute	Value
Display Function	Video
Screen Dimension	Customized
Tube Chip Color	FULL COLOR
Use	Outdoor
Pixels	10mm
Certificate	CE RoHS FCC Certifications
Brightness	10000cd/sqm
Color	1R1G1B
Led chip	SMD3535
Module size	320*160mm
Warranty	2 Years
Viewing Angle	H120° V120°
Pixel pitch	10mm

Product Description

LED technology has revolutionized visual displays worldwide. As a premier application of this technology, our P10 outdoor LED display module delivers exceptional visual experiences for diverse applications, transforming spaces with vibrant, high-quality imagery.

SHENZHEN KAILITE OPTOELECTRONIC CO.,LTD specializes in professional LED display manufacturing, offering complete customized LED screen solutions with competitive pricing and guaranteed quality.

Key Features

Customized complete solutions for your specific requirements
Factory-direct pricing with superior quality
Simple installation and easy maintenance
2-year comprehensive warranty

Technical Specifications

Item	PH10
Color	Full-color real pixels
Use environment	Outdoor
Pixel pitch	10mm
Module size	320*160mm
Physical density	10000dots/square meter
Pixel configuration	1R1G1B
LED chip	SMD3535
Module resolution	32*16
Module power	45w
Recommended viewing distance	10-70m
Best viewing angle	H: 120°; V:120°
Maximum power consumption	850w
Average power consumption	420w
Cabinet size	W960m×H960mm
Standard cabinet resolution	96*96
Weight	38kg/panel
Driving method	1/4 Scan, Constant Current
Video frame rate	≥60 Hz
Rate refresh	≥1200Hz
White balance brightness	≥5500cd
Operating temperature/Humidity	-30℃~+45℃
Ingress protection	Front:IP 43
Input voltage	110-220V AC±10%
Gray scale /Color	Display Colors ≥16.7N(Synchronize)
Brightness control	Manual/Automatic
Input signal	RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Control system	PCTV+DVI video card+control card+fiber
MBTF	>5000 hours
Life time	>100,000 Hours
The rate	<0.0001

Packaging & Shipping

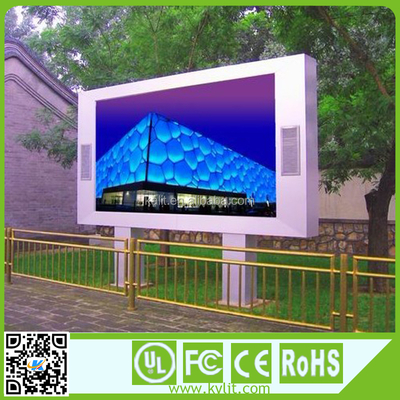

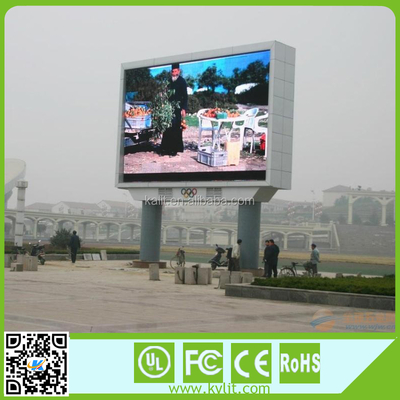

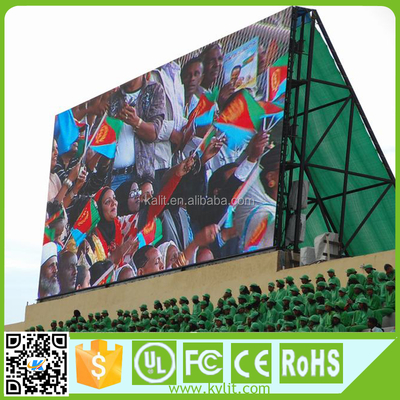

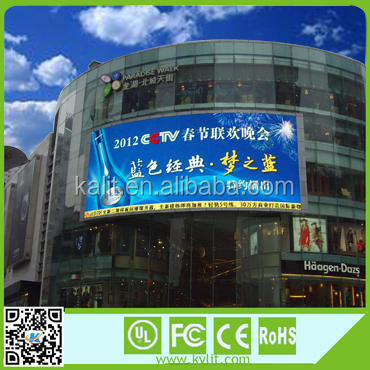

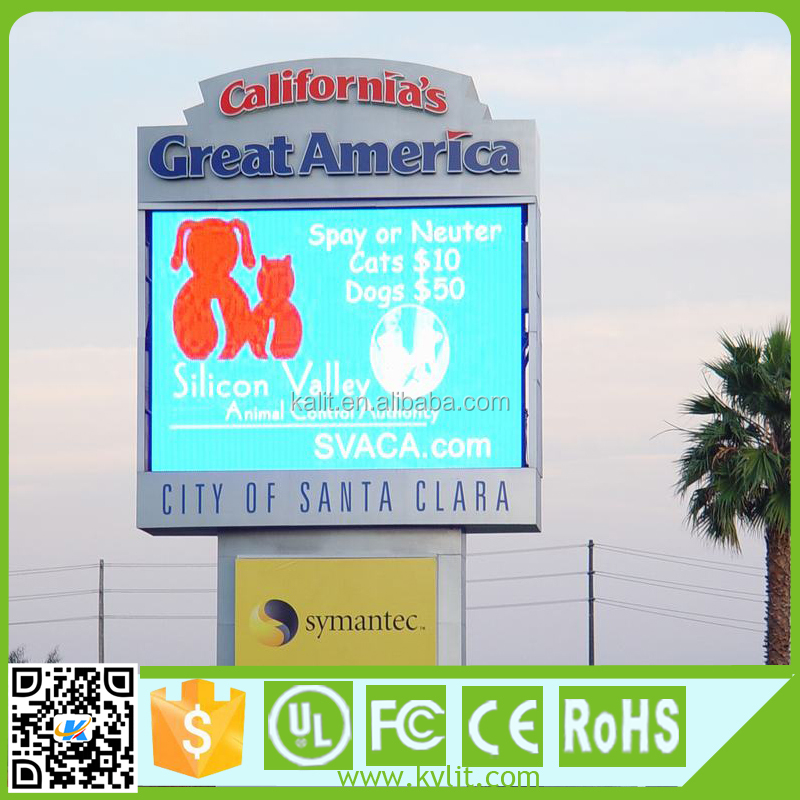

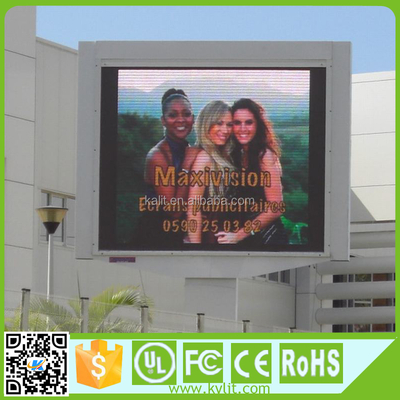

Successful Cases

Why Choose Us

Established LED screen manufacturer with guaranteed quality
Factory-direct pricing (5%-10% lower than intermediaries)
15-member professional sales and technical support team
Custom solutions tailored to specific customer requirements

Company Information

Shenzhen KAILITE Optoelectronic Co., Ltd. is a professional LED screen manufacturer with extensive experience in overseas projects. We provide complete solutions tailored to your specific requirements, ensuring worry-free implementation.

We welcome trial orders, even for single display cabinets, confident our quality and service will exceed expectations. Our strength lies in both outdoor and indoor LED displays, offering competitive pricing through scale advantages.

Frequently Asked Questions

1. What other models do you offer?

We provide a complete range of LED displays including indoor models (P2.5, P3, P3.91, P4, P4.81, P5, P6, P7.62, P10) and outdoor models (P5, P6, P8, P10).

2. Are you a factory? What is your warranty policy?

Yes, we are an 8-year established factory offering 2-year warranty with lifetime maintenance support.

3. What content formats does your LED screen support?

Our displays support videos, flash animations, WAV/MIDI audio, PowerPoint presentations, images, and more.

4. What is your typical delivery time?

Delivery typically occurs within 15-25 days after receiving deposit.

5. How do you package and ship products?

We use secure wooden or flight cases, shipping via air or sea freight according to customer requirements.
