Name: P10 Outdoor LED Billboard 6500cd/sqm Full Color Display
Brand: SHENZHEN KAILITE OPTOELECTRONIC TECHNOLOGY CO., LTD
SKU: P10 outdoor led screen
Price: 400.00 USD
Availability: InStock

Home Products Outdoor Advertising Led Display

P10 Outdoor LED Billboard 6500cd/sqm Full Color Display

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	kailite p10 outdoor led screen
Model Number:	P10 outdoor led screen

Payment & Shipping Terms:

Minimum Order Quantity:	12

Contact Now

Detailed Product Description

Tube Chip Color:	1R1G1B Full Color	Drive Method:	1/2 Scan
Physical Density:	10000 Dots/sqm	Refresh Rate:	1920Hz-3840Hz
Brightness:	6500cd/sqm	Average Power:	450w
Pixel Pitch:	10mm	Module Size:	320*160mm
LED Chip:	SMD3535	Module Resolution:	32*16
Module Power:	70w	Viewing Angle:	H: 140°; V:140°
Maximum Power:	900w	Cabinet Size:	W960m×H960mm
Weight:	32kg/panel
Highlight:	P10 outdoor LED billboard , 6500cd/sqm full color display , outdoor advertising LED screen

Full Color LED Display Panel P10 P6 Advertising Billboard

Product Specifications

Name	P10 LED Billboard
Usage	Displaying Videos, Images, Texts
Tube Chip Color	1R1G1B Full Color
Drive Method	1/2 Scan
Physical Density	10000 dots/sqm
Refresh Rate	1920Hz-3840Hz
Warranty	2~3 Years
Brightness	6500cd/sqm
Certificate	CE ROHS FCC ISO9001 CCC
Average Power Consumption	450W

Key Features

High brightness exceeding 6500cd/m² for clear visibility even in direct sunlight
100% waterproof design for reliable operation in all weather conditions
Supports virtually all video file formats, images, and text content
3-year warranty with lifetime maintenance support

Technical Parameters

Color	Full Color
Use Environment	Outdoor
Pixel Pitch	10mm
Module Size	320×160mm
Physical Density	10000 dots/square meter
Pixel Configuration	1R1G1B
LED Chip	SMD3535
Module Resolution	32×16
Module Power	70W
Recommended Viewing Distance	10-70m
Best Viewing Angle	H: 140°; V:140°
Maximum Power Consumption	900W
Average Power Consumption	450W

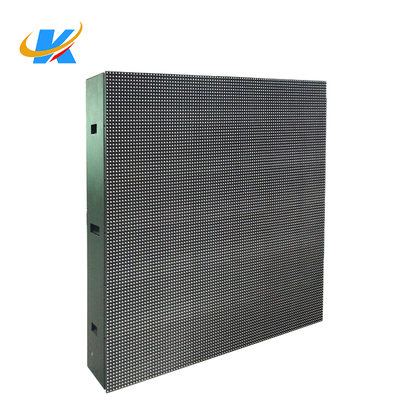

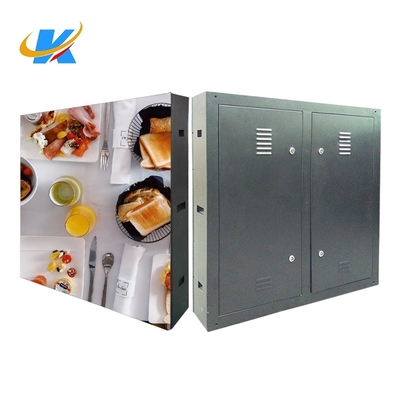

Cabinet Size	W960mm×H960mm
Standard Cabinet Resolution	96×96
Weight	32kg/panel
Driving Method	1/2 Scan, Constant Current
Video Frame Rate	≥60 Hz
Refresh Rate	≥1200Hz
White Balance Brightness	≥6500cd
Operating Temperature/Humidity	-40℃~+65℃
Ingress Protection	Front:IP67; Back:IP65
Input Voltage	110-220V AC±10%
Gray Scale/Color	Display Colors ≥16.7 Million
Brightness Control	Manual/Automatic
Input Signal	RF, S-VIDEO, RGBHV, YUV, YC & COMPOSITION, etc.
Control System	Asynchronous or Synchronous
MBTF	>5000 hours
Life Time	>100,000 Hours
The Rate	<0.0001

Why Choose Our LED Display Panels

Industry Experience: 11 years in LED display manufacturing with 5 years of specialized expertise
Comprehensive Support: Full technical support for installation, debugging, and maintenance
Reliable Warranty: 2-year warranty with lifetime maintenance service
Efficient Solutions: Complete project solutions with proactive issue resolution
Cost-Effective Shipping: Competitive rates through established shipping partners
Professional Partnership: We treat every client as a valued partner
