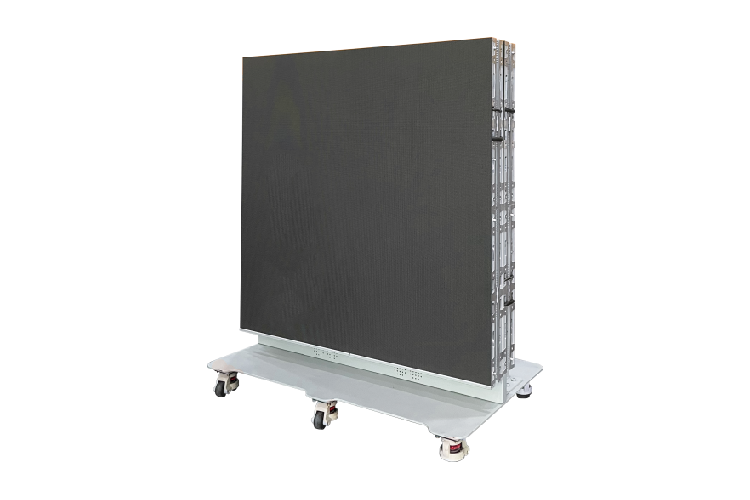

KAILITE KH Series P3.9 Indoor 2x2m Foldable LED Poster Screen 512x512 Pixels 8 Unit Cascade Large Venue Display

The KAILITE KH Series P3.9 multi-fold LED advertising machine carries a 512 x 512 pixel resolution and the widest cascade tolerance in the KH family, supporting up to eight screens on one controller. SMD2121 lamp beads at 1/16 scan keep the display bright and stable across large viewing distances, which suits arena entrances, transport hubs and covered outdoor walkways where the audience stands several meters away. The 2000 x 2000mm face is spliced from four 1000 x 500mm and eight 500 x 500mm cabinets on a wheeled base, and the 33mm cabinet profile keeps the folded package slim for storage.

Up to eight screens can be driven as one canvas for arena and transport hub walls.

SMD2121 lamp beads deliver stable brightness across long viewing distances.

• Novastar Control Platform: Novastar A5s Plus receiving cards with a private design HUB board keep configuration simple and spare parts easy to source.
• Low Brightness Drop: Brightness attenuation is held under 0.0002, keeping color and luminance uniform after years of continuous advertising operation.
• Mobile & User Friendly: A 1000 x 185 x 640mm wheeled stand with push and pull handles lets one operator move the 100kg unit between indoor venues.
• Long Service Life: Rated for more than 100,000 hours of operation, which equals roughly eleven years of continuous 24 hour advertising.
• Front Maintenance: Magnetic front service modules can be swapped from the display side, so no rear access corridor is required behind the screen.

• Cinema Foyers & Entertainment Venues: Trailer walls and schedule boards that stay readable across wide lobby distances.
• Transport Hubs & Covered Walkways: Directional and advertising messaging for high traffic indoor public spaces.
• Stage Performances & Events: Flexible video walls providing dynamic backgrounds and motion effects for presentations and launches.
• Corporate Lobbies & Reception Areas: High end welcome screens and digital signage that carry brand identity at eye level.

• 14 Years of LED Focus: Established in 2012, KAILITE works only on LED display R&D and manufacturing across a 10,000 square meter plant in Shenzhen.
• Factory Direct Pricing: Own production lines with no trading layer in between, which keeps wholesale quotes competitive at container volume.
• Fast Technical Response: A dedicated international sales team supports configuration, spare parts and remote commissioning around the clock.
• Certified Production: ISO 9001, FCC, RoHS, CE and CCC certified manufacturing processes for compliant market entry.

• Assemble modules and cabinets only with the power fully disconnected; never touch the lit screen surface.
• Ground the power supply, cabinet and screen shell with a ground resistance below 10 ohm before commissioning.
• Keep working temperature between -20 and 50°C and humidity between 10% and 65% RH; install a hygrograph on site.

• Two year quality guarantee period on modules, power supplies and receiving cards.
• The loading program is delivered with the screen so it is ready to run right after installation, with no re debugging needed.
• New users receive free remote control debugging and software handling support from our engineers.
