| Place of Origin: | Shenzhen, China |
| Brand Name: | KAILITE |
| Certification: | ISO9001, FCC, RoHS, CE, CCC |
| Model Number: | KH-2.9-2000 |
| Minimum Order Quantity: | 2 square meters |
|---|---|
| Price: | Negotiable, factory direct quote per square meter |
| Packaging Details: | Wooden case and flight case with shock-proof foam for indoor LED poster screen |
| Delivery Time: | 20-25 days for rental package |
| Payment Terms: | T/T,L/C,Western Union,D/P,D/A |
| Supply Ability: | 9000 square meters per month |
| Pixel Pitch: | 2.9mm | Screen Resolution: | 672 X 672 |
|---|---|---|---|
| LED Type: | SMD1515 | Scan Method: | 1/21 |
| Max Cascade Units: | 5 | Screen Size: | 2000x2000mm |
| Cabinet Size: | 1000x500mm / 500x500mm | Cabinet Thickness: | 33mm |
| Cabinet Material: | Die-casting Aluminum | Brightness: | 550-800 Cd/m2 |
| Refresh Rate: | >=3840Hz | Contrast Ratio: | 6000:1 |
| Viewing Angle: | H140 / V140 | Grey Level: | 8-14 Bit |
| Ingress Protection: | IP43 | Maintenance: | Front Service |
| Receiving Card: | Novastar A5s Plus | Power Supply: | 200W |
| Surface Treatment: | GOB Protection | Whole Machine Weight: | 100kg |
| Folded Size: | 1000x1200x640mm | Warranty: | 2 Years |
| Packing: | Flight Case | Application: | Rental And Events |
| Highlight: | P2.9 Rental LED Poster Screen,Flight Case Event Display,672x672 Pixel Touring Advertising Machine |
||

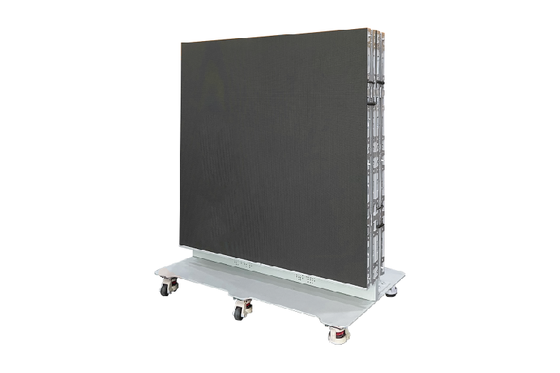

The KAILITE KH Series P2.9 rental multi-fold LED advertising machine packages the 2000 x 2000mm, 672 x 672 pixel display for touring use, shipping inside flight cases with the wheeled base, stand and cabinets protected for repeated loading. Each cabinet is only 33mm thick and weighs 5kg or 10kg, so a two person crew can build the screen in minutes without tools, and up to five units cascade into one seamless backdrop. SMD1515 lamp beads at 1/21 scan plus 3840Hz refresh keep the picture clean on broadcast cameras, which makes the unit a practical rental stock item for event companies.
Ships in flight cases with stand and cabinets protected for repeated loading.
Each cabinet weighs 5kg or 10kg so a two person crew can build the screen without tools.
| Item | Specification |
|---|---|
| Pixel pitch | 2.9mm |
| Screen resolution | 672 x 672 |
| LED type | SMD1515 |
| Scan method | 1/21 |
| Max cascade units | 5 |
| Pixel Density | 118906 dots/m2 |
| Packing | Flight case for touring and repeated transport |
| Screen size | 2000 x 2000 x 33mm (thickness) |
| Whole size with stand | 2000 x 2195 x 640mm |
| Stand size | 1000 x 185 x 640mm |
| Folded size | 1000 x 1200 x 640mm (with stand) |
| Whole machine weight | 100kg |
| Refresh rate | ≥3840Hz |
| Brightness | 550-800 cd/m² |
| Contrast ratio | 6000:1 |
| Viewing angle | H 140° / V 140° |
| Grey level | 8-14 bit |
| Ingress protection | IP43 (indoor use) |
| Maintenance way | Front maintenance |
| Cabinet combination | 4 pcs 1000x500mm + 8 pcs 500x500mm |
| Cabinet thickness | 33mm |
| Cabinet weight | 10kg / 5kg |
| Cabinet material | Die-casting aluminum |
| Modules per cabinet | 8 pcs / 4 pcs |
| Module size | 250 x 250mm (no bottom shell) |
| HUB board | Private design integrated card |
| Receiving card | Novastar A5s Plus |
| Power supply | 200W |
| Surface treatment | GOB protection |
| Working temperature | -20 to 50°C |
| Storage temperature | -10 to 30°C |
| Working humidity | 10%-65% RH |
Q: How is the screen maintained on site?
A: Modules are front serviceable; the spare module is pulled out magnetically and replaced without dismantling the cabinet.
Q: When will the goods arrive in my country?
A: Sea freight to most major ports takes approximately 22 to 24 days after shipment.
Q: What is the minimum order quantity?
A: 4 square meters, which equals one 2 x 2m unit, and mixed pitch orders can be combined.

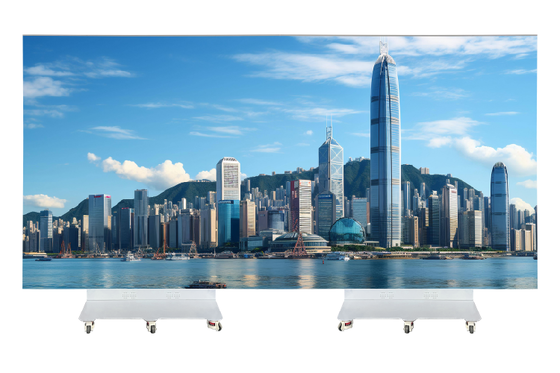

Q: Can several screens work as one video wall?
A: Yes, cascade support lets multiple units run as one canvas, from two screens at P1.95 up to eight screens at P3.9.
