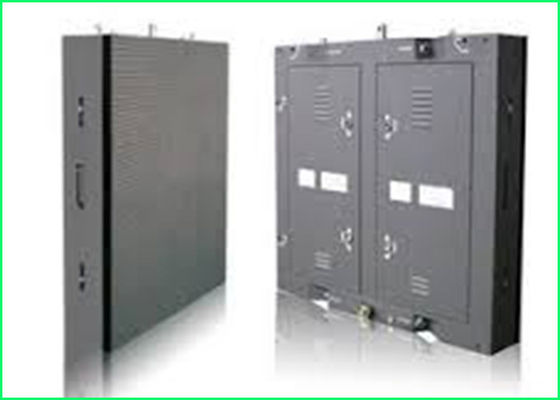

Name: P10 Outdoor Advertising LED Display Screen 960 * 960mm Waterproof
Brand: Kailite
SKU: Outdoor SMD P10
Rating: 4.7 (153 reviews)

Home Products Outdoor Advertising Led Display

P10 Outdoor Advertising LED Display Screen 960 * 960mm Waterproof

Product Details:

Place of Origin:	Shenzhen/Guangdong/China
Brand Name:	Kailite
Certification:	CE/RoHS/UL/ISO9001
Model Number:	Outdoor SMD P10

Payment & Shipping Terms:

Minimum Order Quantity:	1 SQM
Price:	Negotiation
Packaging Details:	woode pancking /flightcase packing
Delivery Time:	30days
Supply Ability:	1000 SQM/Month

Contact Now

Detailed Product Description

Module Size:	320*160mm	Cabinet Size:	960*960mm
Cabinet Weight:	34KG	Cabient Material:	Iron
Module Resolution:	32*16	Cabinet Resolution:	96*96
Best View Distance:	10m	Brightness:	7500cd/m2
Highlight:	led outdoor advertising screens , outdoor led video display

P10 fullcolor 960*960mm Waterproof iron cabinet for outdoor led advertising display

Specifications:

1. p10 big screen outdoor led display

2. Factory price and good quality

3. Environmental-friendly and energy-saving.
4. Convenient and easy maintenance
5. Good heat dissipation capability because of the unique design of vent fan.

Item	PH10
Color	Full-color real pixels
Use environment	Outdoor
Pixel pitch	10mm
Module size	320*160mm
Physical density	10000 dots/square meter
Pixel configuration	1R1G1B
LED chip	SMD3535
Module resolution	32*16
Module power	70w
Recommended viewing distance	10-70m
Best viewing angle	H: 120°; V:120°
Maximum power consumption	620w
Average power consumption	250w
Cabinet size	W960m×H960mm
Standard cabinet resolution	96*96
Weight	40kg/panel
Driving method	1/4 Scan, Constant Current
Video frame rate	≥60 Hz
Rate refresh	≥1200Hz
White balance brightness	≥6000cd
Operating temperature/Humidity	-30℃~+45℃
Ingress protection	Front:IP 67; Back:IP65
Input voltage	110-220V AC±10%
Gray scale /Color	Display Colors ≥16.7N(Synchronize)
Brightness control	Manual/Automatic
Input signal	RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc
Control system	PCTV+DVI video card+control card+fiber
MBTF	>500 hours
Life time	>100,000 Hours
The rate	<0.0002

Our Products’ Features:

Quality ---- Methods for quality assurance

Strict IQC:

1.According to ；

2.AQL international checking standard , for all coming materials；

3.In Process Quality control；

4.Fully inspection before deliver to production；

Module Aging:

1. 100% fully test

2. condition: 72 hours with 256 grey level

3. Finished-Panel Aging

100% full lighting test (both video and white in 2 hours a circle) and Scanning Test

White-Balance Testing:

Condition: In a Black House

Standard: IS standard which LED industry recognized standard

Purpose: measure the Luminance and white balance values for each order , keep record

Vibration Testing

Condition: 3 – 5 minutes up and down in 5mm range

Trade Terms:
1). Payment: T/T ,ususally 30% prepayment before production, 70% balance to be paid before delivering,it also change according to total quantity
2). Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days
3). Sample can be deliveried within 3days
4). Shipping port: Shenzhen, Mainland China
5). Discounts are offered based on order quantities
6). MOQ:1 sqm/1pcs

Our service:

1). Your inquiry related to our products or prices will be replied in 24hrs.
2). Well-trained and experienced staffs to answer all your enquires in fluent English .
3). OEM&ODM, any your customized screen we can help you to design and put into product.
4). Distributer ship are offered for your unique design and some our current models .
5). Protection of your sales area, ideas of design and all your private information
