| Place of Origin: | Shenzhen/Guangdong/China |
| Brand Name: | Kailite |
| Certification: | CE/UL/RoHS/ISO9001 |
| Model Number: | Outdoor SMD P6 |
| Minimum Order Quantity: | 1SQM |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden packing /flightcase packing |
| Delivery Time: | 15days after receive the deposit |
| Supply Ability: | 1000SQM/Month |
| Module Size: | 192mm*192mm | Cabinet Size: | 576mm*576mm/960mm*960mm |
|---|---|---|---|
| Module Resolution: | 32*32 | Cabinet Resolution: | 96*96/192*192 |
| LED Chip: | SMD2727 | Cabinet Material: | Iron Cabinet |
| Brightness: | 6500cd/㎡ | Color: | Fullcolor |
| High Light: | outdoor advertising led display screen,outdoor led video display |
||

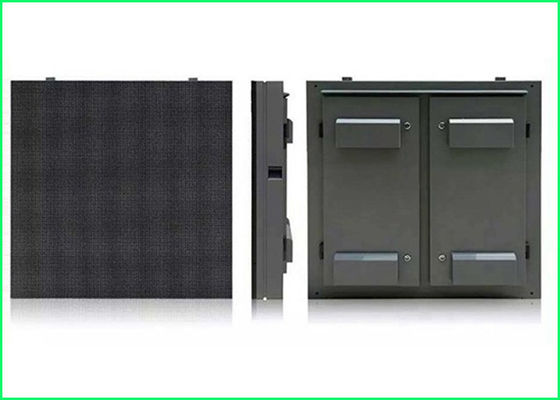

Super Slim Weatherproof P6 LED Video Display Screen For Advertising Outdoor
| Item | PH6 |
| Color | Full-color real pixels |
| Use environment | Outdoor |
| Pixel pitch | 6mm |
| Module size | 192*192mm |
| Physical density | 27777 dots/square meter |
| Pixel configuration | 1R1G1B |
| LED chip | SMD2727 |
| Module resolution | 32*32 |
| Module power | 70w |
| Recommended viewing distance | 10-70m |
| Best viewing angle | H: 120°; V:120° |
| Maximum power consumption | 620w |
| Average power consumption | 250w |
| Cabinet size | W576m×H576mm |
| Standard cabinet resolution | 96*96 |
| Weight | 40kg/panel |
| Driving method | 1/8 Scan, Constant Current |
| Video frame rate | ≥60 Hz |
| Rate refresh | ≥1200Hz |
| White balance brightness | ≥6000cd |
| Operating temperature/Humidity | -30℃~+45℃ |
| Ingress protection | Front:IP 67; Back:IP65 |
| Input voltage | 110-220V AC±10% |
| Gray scale /Color | Display Colors ≥16.7N(Synchronize) |
| Brightness control | Manual/Automatic |
| Input signal | RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
| Control system | PCTV+DVI video card+control card+fiber |
| MBTF | >500 hours |
| Life time | >100,000 Hours |
| The rate | <0.0002 |
IP rating: Waterproof level IP65 (front),Waterproof level IP54 (back), fearless of any weather conditions.
Cooling system: Scientific structure design make sure enough space with high efficient fans increase dissipation capability, ensure the stability and reliability even for long time continuous use, and prolong the lifespan of the led display.
3~4pcs cabinets/box
With PE foam protection
Safe & reliable
Details
1. Pin internal bending, multiple waterproof, high reliability.
2. White frame, improve brightness;Dumb smooth process, inhibition of reflection.
Excellent waterproof and dust effects, using irrigation methods sealing glue.
