Place of Origin: | Shenzhen/Guangdong/China |
Brand Name: | Kailite |
Certification: | CE/RoHS/UL/ISO9001 |
Model Number: | Outdoor SMD P10 |
Minimum Order Quantity: | 1 SQM |
---|---|
Price: | Negotiation |
Packaging Details: | woode pancking /flightcase packing |
Delivery Time: | 30days |
Supply Ability: | 1000 SQM/Month |
Module Size: | 320*160mm | Cabinet Size: | 960*960mm |
---|---|---|---|
Cabinet Weight: | 34KG | Cabient Material: | Iron |
Module Resolution: | 32*16 | Cabinet Resolution: | 96*96 |
Best View Distance: | 10m | Brightness: | 7500cd/m2 |
Highlight: | led outdoor advertising screens,outdoor advertising led display screen |

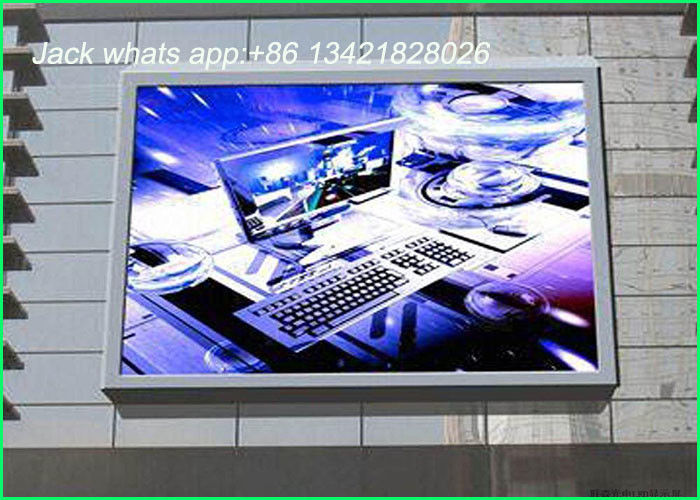

Ultra Thin Full color p10 outdoor led display for advertising in main street , RoHS
Features:
--- Durable fresh color and High brightness
Design of anti-glare mask with high temperature resistant coating on the surface to absorb direct light, reduce glare, and improve the contrast ratio of display.
Anti-UV, anti-oxidation module prevents from deformation.
On-site brightness and chroma calibration can recover the uniformity.
---- High energy efficiency
Adopt high-brightness LED with low consumption, saving 20% power energy.
High PFC power supply can cut 20% power consumption.
Additional temperature, display and brightness management can also save 6% power energy.
---- Stability and reliability
Precise manufacturing process keeps the modules rugged and durable.
IP65 protection grade, waterproof rubber gasket and military-grade conformal coating enable the display to work in all weather outdoor environments.
Aircraft-grade connectors of power supply and signal connection are of high reliability, good conductivity and durability, suitable for rapid connection and high frequency use.
Item | PH10 |
Color | Full-color real pixels |
Use environment | Outdoor |
Pixel pitch | 10mm |
Module size | 320*160mm |
Physical density | 10000 dots/square meter |
Pixel configuration | 1R1G1B |
LED chip | SMD3535 |
Module resolution | 32*16 |
Module power | 70w |
Recommended viewing distance | 10-70m |
Best viewing angle | H: 120°; V:120° |
Maximum power consumption | 620w |
Average power consumption | 250w |
Cabinet size | W960m×H960mm |
Standard cabinet resolution | 96*96 |
Weight | 40kg/panel |
Driving method | 1/4 Scan, Constant Current |
Video frame rate | ≥60 Hz |
Rate refresh | ≥1200Hz |
White balance brightness | ≥6000cd |
Operating temperature/Humidity | -30℃~+45℃ |
Ingress protection | Front:IP 67; Back:IP65 |
Input voltage | 110-220V AC±10% |
Gray scale /Color | Display Colors ≥16.7N(Synchronize) |
Brightness control | Manual/Automatic |
Input signal | RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
Control system | PCTV+DVI video card+control card+fiber |
MBTF | >500 hours |
Life time | >100,000 Hours |
The rate | <0.0002 |
Application of LED display screen
1, Advertising LED display screen
LED display,with its unique advantages, has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.Traditional advertising can only show pictures, But LED display can perfect combine text, pictures, video, and sound with high resolution, high brightness and full color! LED display Advertising can easily attract the attention of pedestrians, and also are easy to remember,which can generate greater advertising effectiveness. Led display advertising now are applied in main street, shopping mall, Plaza Park, outstanding buildings, landmarks, airports, stations and so on.
2, Stadium LED display screen
Led screen are used in stadium to live show, video play, slow motion playback, specific lens display, sports score information presentation, as well as commercials advertising.
The common cases are football field led screen fence, basketball stadium center screen, and screens in swimming stadium, Athletics stadium, etc.
3, Transportation LED display screen
In the busy streets of city or on the highway, we can see LED display screen, these screens are generally controlled by a unified control center, in conjunction with other traffic monitoring equipment, automatic display traffic flow or traffic jam information. Also screens display weather, traffic regulations, to remind drivers to drive safely, and has the effect of signpost. The main application areas are in the city's main roads, road density lots, highways and other places.
4, Stage rental LED display screen
LED rental screens can easily installed and removed, also easy to transport.LED rental screens now are widely used in stage show, concert,theater, party,and other entertainment event as background, it can be live show and replay,and its so big that audience far away from the stage can see the performance on the stage clearly, creating a magnificent , highly infectious atmosphere, combined with highquality sound, giving a perfect visual feast.
High Refresh Rate
The Seamless Splice Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of over 1000Hz, producing best quality outputs in form of pictures, videos and texts.
Strict Aging Test
All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.
Trade Terms:
1).Payment: T/T ,ususally 30% prepayment before production, 70% balance to be paid before delivering,it also change according to total quantity
2).Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days
3).Sample can be deliveried within 3days
4).Shipping port: Shenzhen, Mainland China
5).Discounts are offered based on order quantities
6).MOQ:1 sqm/1pcs
Our service:
1).Your inquiry related to our products or prices will be replied in 24hrs.
2).Well-trained and experienced staffs to answer all your enquires in fluent English .
3).OEM&ODM, any your customized screen we can help you to design and put into product.
4).Distributer ship are offered for your unique design and some our current models .
5).Protection of your sales area, ideas of design and all your private information
Contact Person: Mr.Liu
Tel: +8613510138815
