|Place of Origin:||Shenzhen/Guangdong/China|
|Model Number:||P8 Outdoor Fullcolor|
|Minimum Order Quantity:||1SQM|
|Packaging Details:||wooden packing /Flightcase packing|
|Delivery Time:||15days after payment|
|Module Size:||256*128mm||Cabinet Size:||768*768mm|
|Module Resolution:||32*16||Cabinet Resolution:||96*96|
|Module Weight:||0.23kg||Scan Mode:||1/4 Scan|
outdoor advertising led display screen,
outdoor led video display

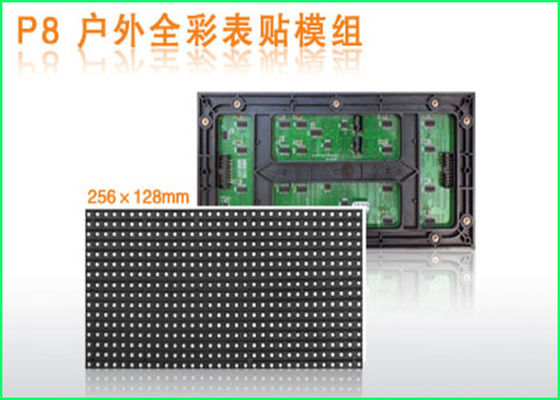

Black smart series P8 Outdoor LED screen sign display used in advertising
Outdoor LED screen sign are widely used for advertising.
We offer you a possibility to run commercials on LED screens sign display which are a unique advertising medium that combines the advantages of outdoor and TV advertising. This kind of advertising is extremely important if you want to create and support one's company image or a product for the sales encouragement. There are many sizes for selection: Outdoor, indoor display screens, semi outdoor screens. And also there are full color, dual color and single color for your selection. Customer design size is acceptable.
Black Smart Series outdoor led display screen sign for advertising and rental case Features
High-performance aluminum alloy frame with the weight only 14.5kg, which can save transportation cost and reduce labor intensity effectively.
Using quick rim lock to connect left-right and up-down cabinets, needs only 10s to install one cabinet, very quick and easy for installing
Macromolecule flexibility mask, surface without glare, better contrast ratio.
Nanotechnology applied in the module, the protection rate can reach IP65.
Using the design of removable dowel pin, so a single cabinet can be taken out from the
whole screen to have a repairmen.
|2||Density per sqm||15625 pixel|
|5||Module resolution||32 dots*16 dots|
|8||Grey Scale/Color||Display colors≥16.7m|
|9||Optimum Viewing Distance||10m|
|10||Driving method||1/4 Scan ,Constant Current|
|11||View Angle||(H) 140°(V)/ 120°|
|12||Frame frequency||60 Hz|
|13||Refresh Rate||400 Hz|
|16||Protection classification||IP65 front/IP54 rear|
|17||Cabinet Weight||55 Kg|
|18||Install mode||Wall mount, hung and stand structure|
|20||Working voltage||AC 110/220v|
|21||Control method||Synchronization or Asynchronization|
|22||Malfunction dot rate||Less than 0.0001|
|26||MTBF||≥ 10000 hours|
|27||Whole display flatness||less than 1mm juncture|
|28||Transmission distance||LAN cable ≤ 100m,optic fiber transmission,MMF ≤500m, SMF ≤15km|
High Refresh Rate
The Seamless Splice Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of over 1000Hz, producing best quality outputs in form of pictures, videos and texts.
Strict Aging Test
All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.
1. Synchronous System(contact sales if you would like the led display with Linsn or NovaStar or Other brand control system)
1. Input resolution: 1920×1200,2048×1152,2560×960(width and height can be specially defined by customers)
2. Capacity: 1.3 million pixels. Supply voltage: 5V
3. Control method: USB interface.
2. Asynchronous System
1. Storage extension method: USB flash disk/ SD card
2. Capacity of cascading receiving cards: 512x1024, 960x600, 1024x570, 1526x384, 2048x256
3. Network access methods: 3G,Wi-Fi,ADSL
1). Payment: T/T ,ususally 30% prepayment before production, 70% balance to be paid before delivering,it also change according to total quantity
2). Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days
3). Sample can be deliveried within 3days
4). Shipping port: Shenzhen, Mainland China
5). Discounts are offered based on order quantities
6). MOQ:1 sqm/1pcs
