ROHS P4 Indoor Full Color Led Display Led Stage Screen For Business

ROHS P4 Indoor Full Color Led Display Led Stage Screen For Business

ROHS P4 Indoor Full Color Led Display Led Stage Screen For Business
ROHS P4 Indoor Full Color Led Display Led Stage Screen For Business
ROHS P4 Indoor Full Color Led Display Led Stage Screen For Business
Product Details:
Place of Origin: China
Brand Name: kailite
Certification: CE, FCC, ROHS
Model Number: p4
Payment & Shipping Terms:
Minimum Order Quantity: 2 Square Meters
Price: Negotiation
Packaging Details: Wooden Case; Flight Case
Delivery Time: 7-21 work days
Payment Terms: T/T
Supply Ability: 8000 square meters per month
Contact Now
Detailed Product Description
Pixel Pitch: 4mm Module Size: 256mm*128mm
Physical Density: 62500 Dots/sqm Usage: Indoor
Function: Video Color: Full Color
Cabinet Size: 512mm*512mm Driving Method: 1/16 Scan
Refresh Rate: 1200Hz Warranty: 2 Years
Life Time: >100,000 Hours
High Light:

led wall panel

,

large led display

,

ROHS P4 LED Stage Screen

64dots * 32dots P4 RGB Outdoor LED Screen, Pitch 4mm Full Color Led Message Signs



Quick Detail



1. Super Brghtness and High refresh rate for indoor usage



2. Blank lamp SMD2121 with full color



3. Simple cabinet without cover



4. Customer size and provide us with Length and Height or Area



5. Easy to install and it's suitable for all kind of weather



6. Modules: p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10





Applications



------ Sdadiums led displays



------ Magnificent screen for Church



------Big Conference hall screen



------ Airport running message signs



------ Entertaiment led screen





Specifications



Item P4
Main parameters Technical parameters UNIT parameters values









Module Parameters

Pixel pitch MM 4
Panel size MM L256*H128
Physical density /㎡ 62500Dots
Pixel Configuration R/G/B 1,1,1
Driving method   Constan current 1/16 scan
LED Encapsulotion SMD 2121
Display resulotion Dots 64*32
Moduel Power W 20























Display Parameters

Viewing Angle Deg H120V120
Option Distance M 4-28
Maximum Power W 860
Cabinet Size MM L500*H500
Frame Frequency Hz ≥60
Refresh Frequency Hz ≥1200
Equilibrium Brightness CD ≥1200
Operation Temperatuer
/Humidity
-30~+45/
10%~95%
Input Voltage VAC 220V±10%/110V±10%
Ingress Protection   IP43
Gray Scale/Color   ≥16.7M color
Brightness Contral   Manual/Automatic
Input Signal   RF/S-Video/RFB/etc
Contral Systerm   PCTV+DVI video
card+control
card+fiber
MTBF HOURS >5000
Life Time HOURS >100,000
Lamp Failure Frequency   <0.0001



Features

1.High quality:
Use high quality LED with high luminous efficiency and low brightness decay to make the display stable.

2.Good effect:
To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.The products support multiple display modes.

3.Easy maintenance:
Can fix the single point to save the maintenance cost.

4.Good uniformity:
Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well

5.Price
No. 1 cost effective. The price is very good, please contact us for an offer. You can compare and know!

6.Application
It's wide Application, such as stage rental events, exhibition, wedding, advertising, meeting room and so on.

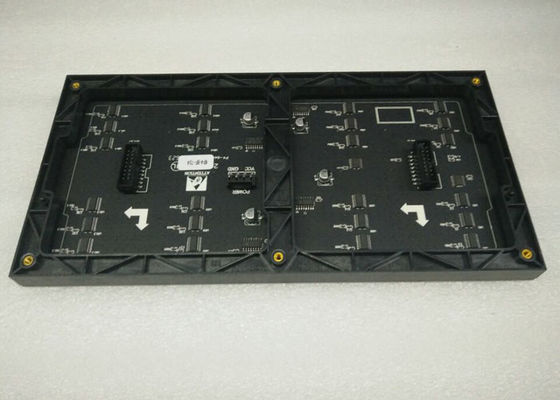

P4 LED cabinet



ROHS P4 Indoor Full Color Led Display Led Stage Screen For Business 0
