Custom High Brightness Outdoor Led Video Wall Board 6mm Full Color For Advertising

China Custom High Brightness Outdoor Led Video Wall Board 6mm Full Color For Advertising supplier
Custom High Brightness Outdoor Led Video Wall Board 6mm Full Color For Advertising supplier Custom High Brightness Outdoor Led Video Wall Board 6mm Full Color For Advertising supplier Custom High Brightness Outdoor Led Video Wall Board 6mm Full Color For Advertising supplier

Large Image :  Custom High Brightness Outdoor Led Video Wall Board 6mm Full Color For Advertising

Product Details:

Place of Origin: China (Mainland)
Brand Name: KAILITE
Certification: CE, FCC, ROHS
Model Number: P6

Payment & Shipping Terms:

Minimum Order Quantity: 2 Square Meters
Price: Negotiation
Packaging Details: Wooden case; Flight case
Delivery Time: 7-21 work days
Payment Terms: T/T
Supply Ability: 8000 Square Meters / Month
Contact Now
Detailed Product Description

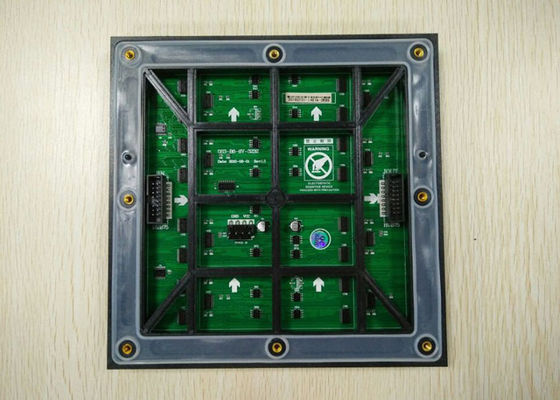

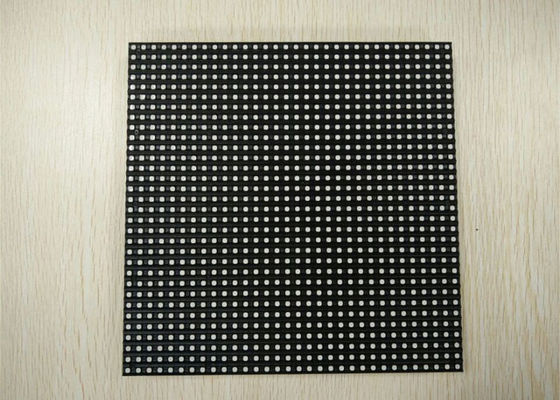

Moduel Size: 192*192mm Physical Density: 27777dots/㎡
Pixel Configuration: 1R1G1B Led Chip: SMD3535
Moduel Resolution: 32*32 Driving Method: Constant Current 1/8scan





Custom High Brightness Outdoor Led Video Wall Board 6mm Full Color For Advertising



Quick Detail



1. Suitable viewing distance 6-70m



2.  Waterproof outdoor usage with contral systerm to display the images



3. Standard cabinet with fan to dissipation the heat quickly



4. A good way to express the messages



Led display advantages



1. With the development of technology, LED large screen display with its unique advantages, widely used in sports entertainment, finance and securities, transportation stations, institutions and enterprises in various places, information dissemination, press releases, advertising the most common display media.


2. LED large screen display system is the basic carrier of all kinds of information transmission, real-time information dissemination tasks bear news, information, culture and commerce. In eye-catching display in the first time to the public to pass. LED display at this time to give full play to its superior video capabilities and color performance, also play a landscaping, improvement of environmental facilities.


3. LED display can be set not only information dissemination, Arts & Entertainment, to promote its in-one, and as a new high-tech products, its rich technology content, momentum majestic appearance, smooth display, colors and delicate performance, which can be environment added a new vitality, set up an event landscape.





Specifications





Item P6



Main parameters Technical parameters UNIT parameters values









Module Parameters

Pixel pitch MM 6
Panel size MM L192*H192
Physical density /㎡ 27777Dots
Pixel Configuration R/G/B 1,1,1
Driving method   Constan current 1/8scan
LED Encapsulotion SMD 3535
Display resulotion Dots 32*32
Moduel Power W 35























Display Parameters

Viewing Angle Deg H120V120
Option Distance M 6-70
Maximum Power W 900
Cabinet Size MM L960*H960
Frame Frequency Hz ≥60
Refresh Frequency Hz ≥1200
Equilibrium Brightness CD ≥6500
Operation Temperatuer
/Humidity



-30~+45/
10%~95%
Input Voltage VAC 220V±10%/110V±10%
Ingress Protection   Front:IP67;Back:IP65
Gray Scale/Color   ≥16.7M color
Brightness Contral   Manual/Automatic
Input Signal   RF/S-Video/RFB/etc
Contral Systerm   PCTV+DVI video
card+control
card+fiber
MTBF HOURS >5000
Life Time HOURS >100,000



Lamp Failure Frequency





<0.0001






FAQ



1. Except this model, are there any other models?

yes, For indoor led screen we have p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10

For outdoor led screen we have p5 p6 p8 p10



2. Are you factory? and your warranty?

yes we are 8 years factory, 2 years warranty and lifetime maintenance



3. What's the function of your led screen?

It supports videos, flash, WAV/MIDI, PPT, images and so on



4. What's your delivery time?

Wthin 15-25 days after receiving deposit



5. What's your package and shipping way?

Goods are packed with wooden case or flight case; delivered by air or sea



Installation

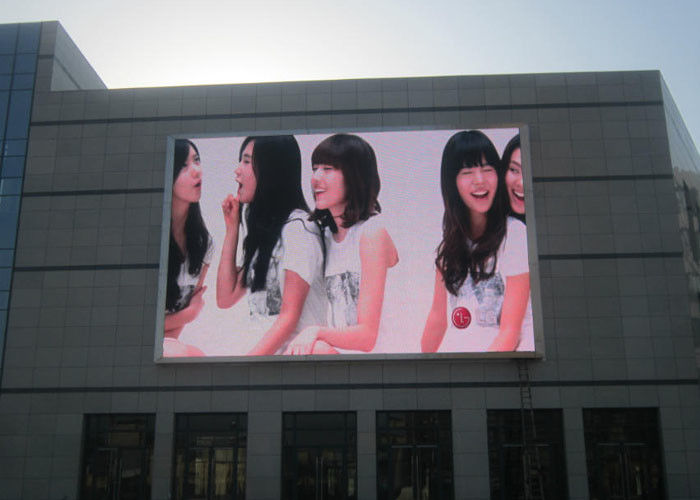

Custom High Brightness Outdoor Led Video Wall Board 6mm Full Color For Advertising
